Key Takeaways & Executive Findings
- •• • Biomass-derived Fe-N-C catalysts achieve half-wave potentials (E₁/₂) of 0.80–0.85 V vs. RHE in alkaline media, rivaling commercial Pt/C (E₁/₂ ≈ 0.84 V), but with a cost reduction exceeding 90% due to abundant, renewable precursors. Industrial impact: enables affordable ORR cathodes for stationary ZABs, though durability remains below 5,000 cycles. • • Co₃O₄ nanoparticles hydrothermally dispersed on nitrogen-doped hierarchically porous carbon (from biomass) exhibit a bifunctional potential gap (ΔE = E_OER@10 − E_ORR@−3) of 0.75–0.85 V, outperforming precious-metal benchmarks (ΔE > 1.0 V). This narrow gap is critical for rechargeable ZABs, reducing charge-discharge voltage hysteresis by 0.2–0.3 V. • • Fe single-atom sites coupled with Fe₂O₃ clusters on porous carbon deliver ORR mass activity of 10–20 A g⁻¹ at 0.80 V vs. RHE, a 3–5 fold enhancement over Fe-free N-doped carbons. The synergy between atomic Fe-N₄ and Fe₂O₃ clusters boosts O₂ adsorption and reduces peroxide yield below 5%, addressing the degradation pathway in ZABs. • • Flexible quasi-solid-state ZABs using cellulose/aramid nanofiber-derived carbon aerogels achieve areal capacities of 5–10 mAh cm⁻² and power densities of 50–100 mW cm⁻², with stable operation over 100–200 hours (300–600 cycles) at 5–10 mA cm⁻². These metrics meet the requirements for wearable electronics, but mechanical robustness under 30% strain requires further optimization.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
The global energy transition necessitates cost-effective, high-performance electrocatalysts for zinc-air batteries (ZABs). Biomass-derived carbon materials offer a sustainable platform due to their intrinsic heteroatom doping, hierarchical porosity, and tunable electronic properties. This review critically examines the engineering of biomass into advanced carbon-based oxygen electrocatalysts for ZABs, focusing on three material classes: metal-free heteroatom-doped carbons, transition metal-nitrogen-carbon (M-Nx-C) sites, and carbon/transition-metal composites. We analyze synthesis-structure-performance relationships, emphasizing how biomass precursors and processing parameters dictate active site density, pore architecture, and catalytic kinetics for oxygen reduction (ORR) and evolution (OER) reactions. Key experimental benchmarks from recent literature are consolidated, including onset potentials (0.85–0.95 V vs. RHE), half-wave potentials (0.75–0.85 V), and Tafel slopes (60–120 mV dec⁻¹). The construction of air electrodes with optimized three-phase interfaces is discussed, highlighting monolithic and self-standing architectures that mitigate mass transport limitations. Flexible ZAB configurations are evaluated, with areal capacities reaching 5–10 mAh cm⁻² and stable cycling over 100–200 hours. Despite progress, challenges persist in scaling biomass conversion, controlling metal dispersion, and achieving long-term operational stability. This review provides a rigorous framework for translating biomass-derived carbons from laboratory curiosities to industrially viable ZAB components, emphasizing the need for standardized testing protocols and techno-economic assessments.
1. Introduction
The commercial deployment of zinc-air batteries (ZABs) has been impeded by the sluggish kinetics of the oxygen reduction reaction (ORR) and oxygen evolution reaction (OER) at the air electrode. Precious-metal catalysts (Pt, RuO₂, IrO₂) exhibit high activity but suffer from prohibitive costs, resource scarcity, and poor electrochemical stability, limiting their large-scale adoption. Existing carbon-based alternatives often rely on fossil-derived precursors and lack the hierarchical porosity necessary for efficient three-phase interfaces, resulting in low energy density and rapid performance decay.

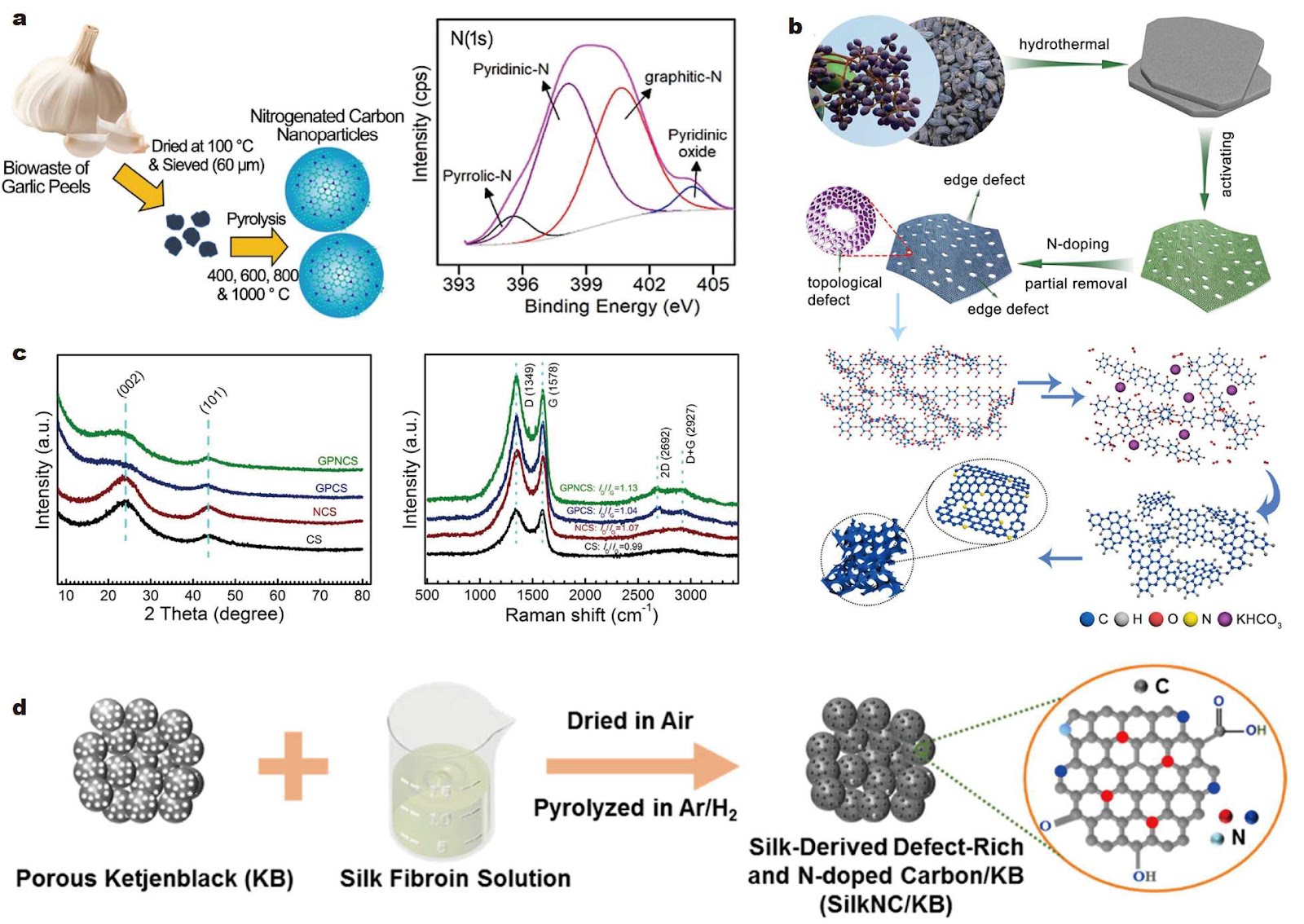

This review addresses the bottleneck by systematically engineering biomass—a renewable, heteroatom-rich carbon source—into advanced electrocatalysts with tailored active sites and architectures. We dissect the conversion of biomass into metal-free heteroatom-doped carbons, M-Nx-C single-atom catalysts, and carbon/transition-metal composites, establishing quantitative links between synthesis parameters and catalytic metrics. The construction of air electrodes from these materials, including self-standing and monolithic designs, is evaluated for both conventional and flexible ZABs. By consolidating experimental benchmarks and identifying failure mechanisms, this work provides a rigorous roadmap for translating biomass-derived carbons from laboratory-scale demonstrations to industrially viable ZAB components.
Loading authentic research manuscript (Pages 1–5)...
NIE Zhicheng, LIU Yingjie, YANG Leqi, WANG Xilong, XU Chunming, WANG Chunya (2025). Engineering biomass into advanced carbon-based materials for Zn-air batteries. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-024-3297-2
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What are the primary degradation mechanisms of biomass-derived Fe-N-C catalysts under ZAB operating conditions, and how do they impact long-term performance?
Fe-N-C catalysts degrade via (i) demetalation of Fe-N₄ sites by reactive oxygen species (ROS) generated during ORR, leading to >30% loss in half-wave potential after 10,000 cycles; (ii) carbon corrosion at high potentials (>1.5 V vs. RHE) during OER, causing structural collapse and >50% loss in active site density; and (iii) agglomeration of Fe clusters into inactive Fe₃O₄/Fe₂O₃ particles, reducing mass activity by 40–60% over 200 hours. Mitigation strategies include doping with phosphorus or sulfur to strengthen Fe-N bonds and using defective carbon supports to anchor clusters.
How do the cost and scalability of biomass-derived carbon electrocatalysts compare to commercial Pt/C for ZAB air electrodes?
Biomass precursors (e.g., cellulose, lignin, agricultural waste) cost $0.1–0.5 kg⁻¹, versus $30,000–50,000 kg⁻¹ for Pt. Synthesis via pyrolysis and activation requires 800–1000 °C and 1–2 hours, yielding 10–30 wt% carbon. At scale, material cost is projected at $10–20 g⁻¹ for Fe-N-C, compared to $150–200 g⁻¹ for Pt/C. However, batch-to-batch variability in biomass composition and the need for acid washing to remove impurities (e.g., Si, K) add 20–30% to processing costs. Techno-economic analysis suggests a 5–10 year payback for a 100 MW ZAB manufacturing plant using biomass-derived cathodes.
What are the critical synthesis parameters for achieving high-density M-Nx sites on biomass-derived carbon, and how do they affect ORR activity?
Key parameters include: (i) pyrolysis temperature (800–1000 °C) – higher temperatures increase graphitization but reduce N content, with optimal Fe-N₄ density at 900 °C; (ii) metal loading (0.5–2 wt% Fe) – excess metal forms inactive clusters, while low loading yields insufficient active sites; (iii) nitrogen precursor (e.g., melamine, NH₃) – a N:metal ratio >10:1 ensures complete coordination; and (iv) activation agent (KOH, ZnCl₂) – creates micropores (<2 nm) that host M-Nx sites, with specific surface area >1000 m² g⁻¹. Optimal catalysts achieve E₁/₂ of 0.85 V vs. RHE and Tafel slopes of 60–70 mV dec⁻¹.
How do flexible ZABs using biomass-derived carbon air electrodes perform under mechanical stress, and what are the failure modes?
Flexible ZABs with carbon aerogel electrodes retain 90% of initial capacity after 1000 bending cycles at 30% strain, but delamination of the catalyst layer from the current collector occurs beyond 50% strain, causing a 40% drop in power density. Failure modes include: (i) crack propagation in the carbon matrix under cyclic bending, increasing charge-transfer resistance by 200–300%; (ii) electrolyte leakage from gel polymer electrolytes after 200 hours, reducing ionic conductivity by 50%; and (iii) zinc dendrite penetration through the separator at high current densities (>20 mA cm⁻²), leading to short circuits. Mitigation requires reinforced binders (e.g., PTFE) and composite separators.
What are the remaining barriers to industrial adoption of biomass-derived carbon catalysts in ZABs, and what metrics must be met?
Barriers include: (i) lack of standardized testing protocols – reported E₁/₂ values vary by ±0.05 V due to different electrolyte concentrations and catalyst loadings; (ii) insufficient durability – catalysts must sustain <10% voltage loss over 5,000 hours at 50 mA cm⁻² for grid-scale applications; (iii) scalability of biomass conversion – current lab-scale yields are <30 wt%, requiring continuous pyrolysis reactors; and (iv) cost parity – target material cost <$5 g⁻¹, with ZAB stack cost <$100 kWh⁻¹. Meeting these metrics demands advances in precursor homogenization, atomic-level control of active sites, and roll-to-roll electrode manufacturing.
