Key Takeaways & Executive Findings
- •• • In vivo 4T1 tumor-bearing mice treated with MMGZ plus 808 nm laser (2.0 W/cm², 5 min) exhibited significant tumor volume reduction (P < 0.0001) compared to PBS controls, demonstrating that the cascade nanoreactor achieves potent tumor growth inhibition through synergistic CO gas therapy, starvation, and photothermal effects. • • The nanoreactor addresses the bottleneck of insufficient endogenous H2O2 (100 μM) and acidity (pH 6.5) in the tumor microenvironment by using GOx to catalyze glucose conversion, generating gluconic acid and H2O2 to amplify MnCO activation and CO release, thereby overcoming the limited efficacy of conventional CO-releasing molecules. • • MPDA's high photothermal conversion efficiency enables localized hyperthermia upon 808 nm laser irradiation, which not only directly induces photothermal damage but also intensifies CO release, providing a trimodal therapeutic effect that enhances overall anticancer efficacy. • • The core-shell design with ZIF-8 encapsulation protects GOx from degradation during circulation and enables tumor-specific release, mitigating off-target CO poisoning risks associated with direct MnCO-H2O2 reactions, as evidenced by the significant antitumor effect and safety profile in the in vivo study.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

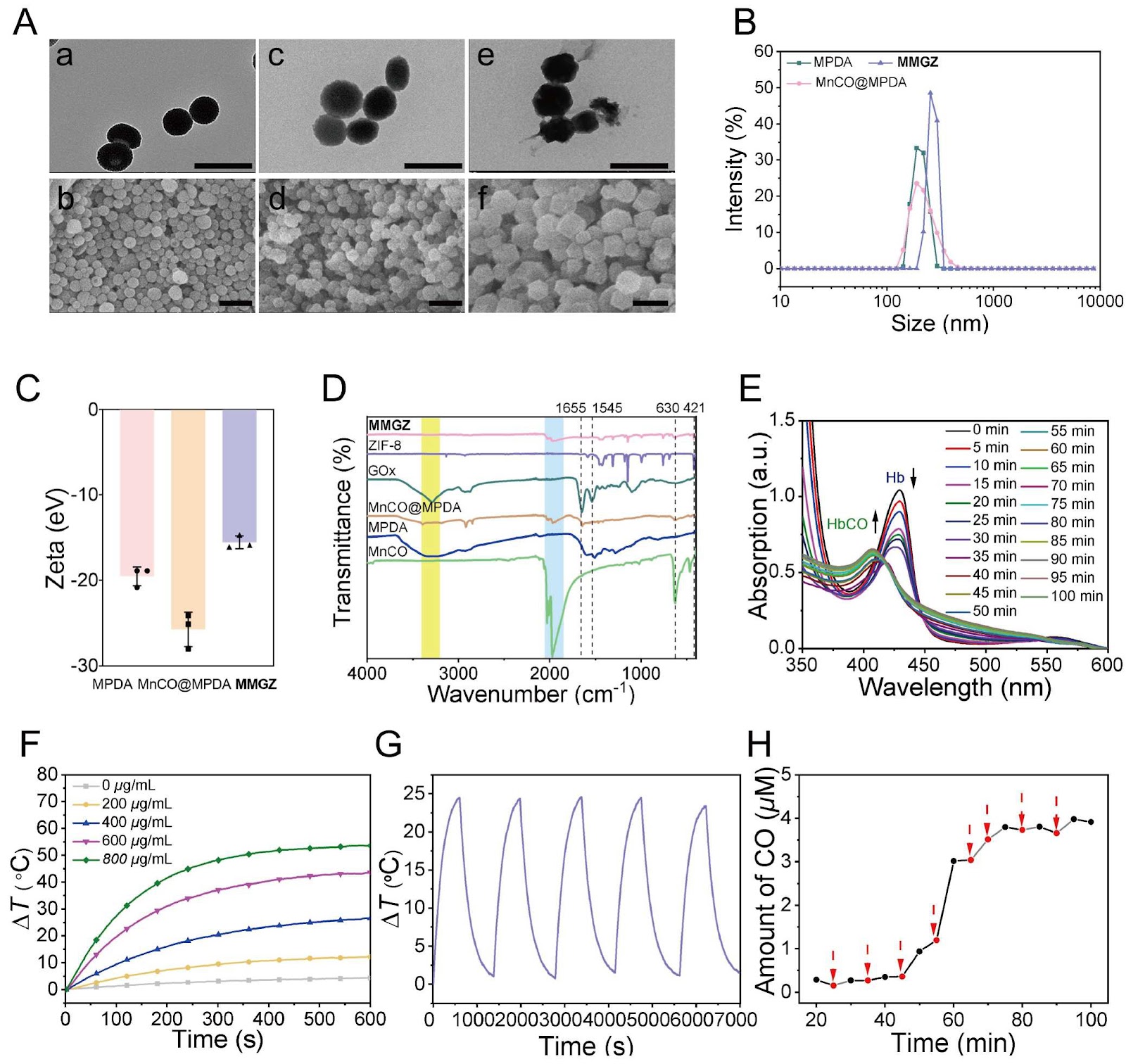

Carbon monoxide (CO) therapy has emerged as a promising approach in cancer treatment. Selecting suitable nanocarriers for delivering manganese carbonyl (MnCO), a CO donor, while simultaneously regulating CO release and compensating for hydrogen peroxide (H2O2) and acidity in the tumor microenvironment is crucial for enhancing the effectiveness of CO therapy. In this study, a tumor microenvironment-responsive core-shell structured cascade nanoreactor was designed and synthesized using mesoporous polydopamine (MPDA) as a nanocarrier, followed by loading of MnCO and glucose oxidase-encapsulated zeolite imidazolate framework-8 (GOx@ZIF-8) nanoparticles. Upon entering cancer cells, the protective shell of GOx@ZIF-8 degrades in response to the acidic tumor environment, releasing GOx. GOx catalyzes the conversion of endogenous glucose into gluconic acid and H2O2, accelerating energy starvation in tumor cells. This process, in turn, promotes the reaction between MnCO and H2O2, resulting in in-situ amplified release of CO. Additionally, the excellent photothermal properties of MPDA enable photothermal therapy. This comprehensive antitumor strategy represents a promising advancement in the field of CO-based cancer therapy.
1. Introduction
Carbon monoxide (CO) therapy has garnered significant attention in the field of gas therapy due to its promising potential in cancer treatment. However, the gaseous nature of CO and its high affinity for human hemoglobin limit its clinical application. To overcome this challenge, various CO-releasing molecules (CORMs) have been developed to deliver CO in biological systems. CORMs are most typically based on rare transition metals (Ru, Mn, Mo, etc.) decorated with dative, L-type CO ligands that can generate CO through reactions with H2O2 without requiring external stimuli. Nevertheless, the poor water solubility of these complexes and the specific tumor microenvironment, characterized by limited levels of H2O2 (100 μM) and acidic conditions (pH 6.5), hampers the anticancer effectiveness of CO therapy. Therefore, it is imperative to design and synthesize suitable nanocomposites capable of delivering transition-metal carbonyl complexes and regulating the tumor microenvironment to optimize the effectiveness of CO therapy.
Currently, a wide range of nanomaterials have been employed to integrate CO-releasing molecules for the development of multifunctional gas therapy nanoplatforms. These include silica nanoparticles, micelles, metal–organic frameworks, polymers, liposomes, and inorganic multifunctional nanoparticles. Among these nanomaterials, mesoporous polydopamine nanoparticles (MPDA) possess several advantages, such as a large surface area, high loading capacity, efficient photothermal conversion, and excellent biocompatibility with tissues. Consequently, MPDA has been recognized as a promising candidate for delivering manganese carbonyl (MnCO), which serves as a CO donor in gas therapy. While initial studies have shown promise through the encapsulation of MnCO within MPDA mesopores via hydrophobic interactions, this approach remains in its nascent stages. The direct reaction with endogenous H2O2 lacks precision, potentially posing a risk of CO poisoning. Additionally, the limited levels of H2O2 and acidity within tumor sites hinder the achievement of a more effective antitumor therapeutic effect. Therefore, there is an urgent requirement for the development of a nanoreactor responsive to the tumor microenvironment, capable of controlling CO release while also compensating for intertumoral H2O2 and acidity. However, such a nanoreactor has been rarely reported.
Loading authentic research manuscript (Pages 1–5)...
Wen-Xiu Ren, Hao Yu, Chen-Yu Li, Fei Kong, Zi-Liang He, Seeram Ramakrishna, Jie Feng, Yu-Bin Dong (2025). Engineering a Multifunctional Core–Shell Structured Cascade Nanoreactor for Augmented and Synergistic Carbon Monoxide Oncotherapy. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-024-3281-x
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the quantitative in vivo antitumor efficacy of the MMGZ nanoreactor under laser irradiation, and how does it compare to controls?
In 4T1 tumor-bearing mice, treatment with MMGZ plus 808 nm laser (2.0 W/cm², 5 min) resulted in a statistically significant reduction in tumor volume (P < 0.0001) compared to PBS, Laser, MGZ, MMZ, and MMGZ without laser groups. Tumor weights were also markedly lower in the MMGZ/Laser group, confirming potent tumor growth inhibition.
How does the nanoreactor overcome the limited H2O2 and acidity in the tumor microenvironment to enhance CO release?
The GOx@ZIF-8 shell degrades in the acidic tumor environment (pH 6.5), releasing GOx. GOx catalyzes glucose to gluconic acid and H2O2, thereby increasing local H2O2 concentration and acidity. This amplified H2O2 reacts with MnCO to generate CO in situ, compensating for the insufficient endogenous H2O2 (100 μM) and enabling controlled CO release.
What are the photothermal performance characteristics of MPDA in this system, and how do they contribute to therapy?
MPDA exhibits excellent photothermal conversion efficiency, generating localized hyperthermia upon 808 nm laser irradiation (2.0 W/cm², 5 min). This hyperthermia not only directly induces photothermal damage to tumor cells but also intensifies the MnCO-H2O2 reaction, thereby enhancing CO release and producing a synergistic trimodal therapeutic effect.
What measures are taken to prevent off-target CO poisoning, and what evidence supports the safety of this approach?
The core-shell design with ZIF-8 encapsulation protects GOx during circulation and enables tumor-specific release due to acidic degradation. This spatial control ensures that CO is primarily generated within the tumor microenvironment, mitigating systemic exposure. In vivo studies showed no significant body weight loss in treated mice, indicating acceptable safety.
What are the scalability and manufacturing challenges for translating this nanoreactor to clinical production?
Key challenges include reproducible synthesis of uniform core-shell nanoparticles, precise control of MnCO loading and GOx encapsulation, and stability of the ZIF-8 shell under storage. The use of MPDA and ZIF-8 materials is amenable to scale-up, but optimization of batch consistency and sterility is required for clinical translation.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
