Key Takeaways & Executive Findings
- •• • TiB2 addition at 0.1 wt% reduces grain size from 117 μm to 35 μm (70% refinement), while 1 wt% TiB2 achieves 29 μm (75% refinement), directly enhancing Hall-Petch strengthening and thermal stability for high-temperature aerospace components. • • Flow stress increases with TiB2 content due to grain boundary strengthening and Orowan looping; at 340 °C and 0.01 s−1, the 1 wt% TiB2 alloy exhibits peak stress exceeding that of the base alloy by approximately 20–30 MPa, requiring higher forming loads but enabling better shape retention during hot working. • • Dynamic recrystallization is accelerated by TiB2-induced grain refinement; at 500 °C and 0.01 s−1, the 1 wt% TiB2 alloy shows a DRX fraction of ~85% versus ~60% for the base alloy, promoting microstructural homogeneity and reducing residual stresses in forged components. • • Excess TiB2 (1 wt%) activates particle-stimulated nucleation (PSN), leading to finer recrystallized grains (average size ~10 μm after deformation at 500 °C and 0.01 s−1) and suppressing grain coarsening during post-deformation annealing, which is critical for maintaining fatigue resistance in aircraft skin materials.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Thermal compression experiments were conducted on Al-Cu-Mg alloys with varying TiB2 contents (0, 0.1, and 1 wt%) in the temperature range of 340–500 °C and strain rate range of 0.01–10 s−1. Arrhenius-type constitutive equations were formulated to characterize flow behavior, and microstructures of deformed alloys were analyzed. TiB2 particles markedly refine grains from 117 μm (0 wt% TiB2) to 35 μm (0.1 wt% TiB2) and 29 μm (1 wt% TiB2). Both grain size reduction and TiB2 presence contribute to increased flow stress during thermal deformation. Grain refinement induced by TiB2 addition enhances dynamic recrystallization (DRX) processes. Excess TiB2 (1 wt%) further stimulates DRX via particle-stimulated nucleation (PSN) mechanism. Addition of TiB2 effectively suppresses coarsening of recrystallized grains following thermal deformation. These findings elucidate the dual role of TiB2 particles in modulating thermal deformation behavior and recrystallization kinetics, providing a quantitative basis for optimizing thermomechanical processing of particle-reinforced Al-Cu-Mg alloys for aerospace and military applications.
1. Introduction
Al-Cu-Mg alloys (2xxx series) are extensively employed in aerospace and military applications owing to their high tensile and yield strengths, excellent fracture and fatigue resistance, and lightweight characteristics. These alloys are primarily used for internal components and skin materials in aircraft. Despite their widespread use, conventional Al-Cu-Mg alloys suffer from limited thermal stability and grain coarsening during hot working processes such as rolling, extrusion, and forging, which degrade mechanical properties and fatigue life. The addition of titanium diboride (TiB2) particles has emerged as a promising strategy to refine grain structure and enhance high-temperature strength, wear resistance, and corrosion resistance. However, prior studies have focused solely on a single TiB2 concentration, leaving the influence of varying TiB2 contents on the thermal deformation behavior of Al-Cu-Mg alloys unexplored.
This study addresses the gap by systematically investigating the effect of TiB2 particles (0, 0.1, and 1 wt%) on the thermal deformation and recrystallization behavior of Al-Cu-Mg alloys. Thermal compression experiments were conducted across a temperature range of 340–500 °C and strain rates of 0.01–10 s−1. Arrhenius-type constitutive equations were formulated to model flow behavior, and microstructural evolution was analyzed. The results demonstrate that TiB2 particles refine grains from 117 μm to 35 μm (0.1 wt%) and 29 μm (1 wt%), increase flow stress, enhance dynamic recrystallization, and suppress recrystallized grain coarsening. These findings provide a quantitative framework for optimizing thermomechanical processing parameters for TiB2-reinforced Al-Cu-Mg alloys, enabling improved performance in high-temperature structural applications.
Loading authentic research manuscript (Pages 1–5)...
MAO Qifei, HU Min, WANG Jiahao, LI Chong, NIE Jinfeng, CHEN Zongning, LIU Yongchang (2025). Effect of TiB2 Particles on the Thermal Deformation and Recrystallization Behaviour of Al-Cu-Mg Alloys. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3461-5
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the quantitative grain refinement achieved with TiB2 addition, and how does it impact mechanical properties?
TiB2 addition reduces grain size from 117 μm (0 wt%) to 35 μm (0.1 wt%) and 29 μm (1 wt%), representing a 70–75% refinement. This enhances Hall-Petch strengthening, leading to increased flow stress and improved high-temperature strength, which is critical for aerospace components requiring thermal stability.
How does TiB2 content influence dynamic recrystallization kinetics during thermal deformation?

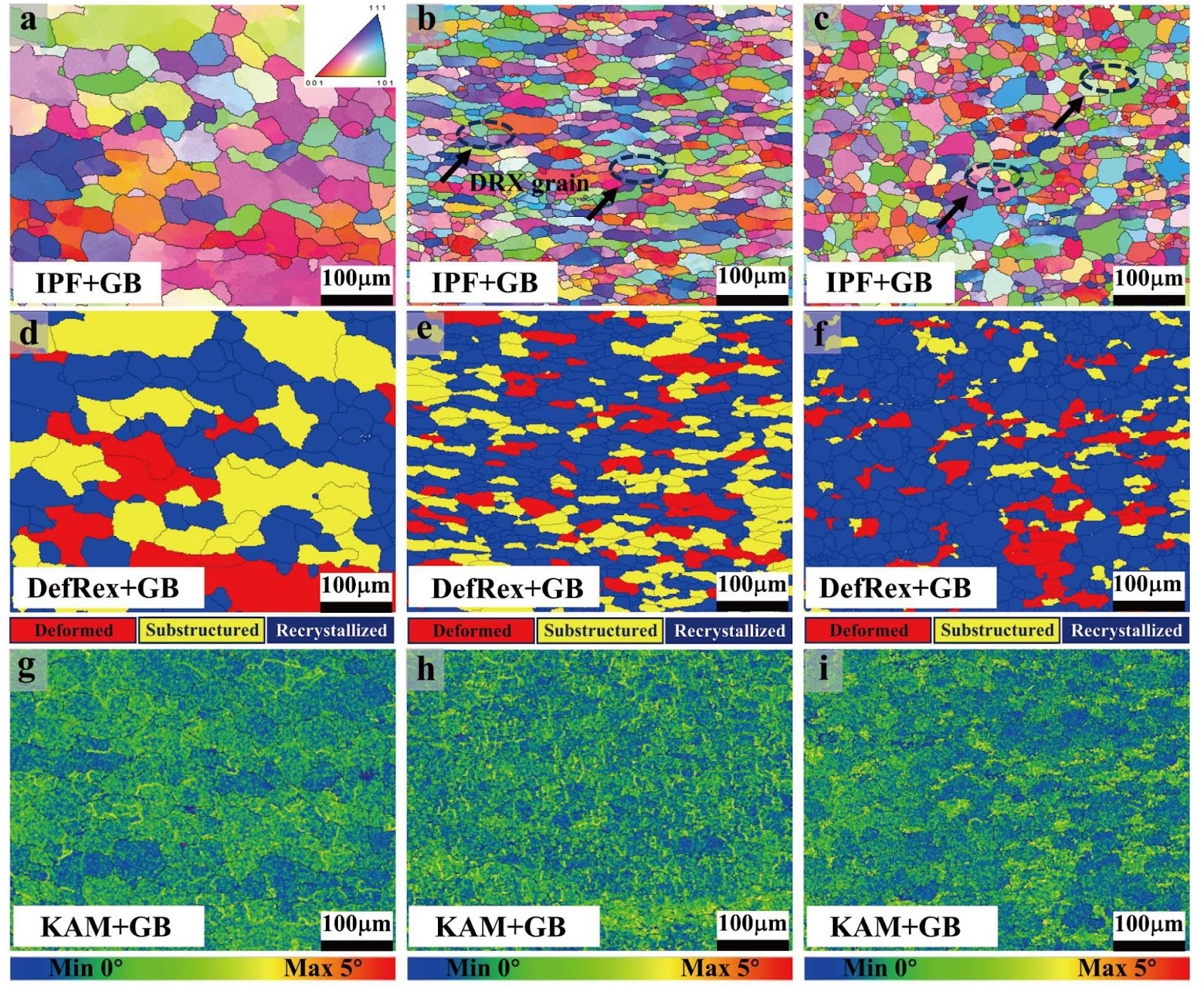

At 500 °C and 0.01 s−1, the 1 wt% TiB2 alloy exhibits a DRX fraction of ~85%, compared to ~60% for the base alloy. The grain refinement induced by TiB2 enhances DRX, and excess TiB2 (1 wt%) activates particle-stimulated nucleation (PSN), further promoting recrystallization and microstructural homogeneity.
What is the effect of TiB2 on flow stress during thermal compression, and what are the implications for hot working?
Flow stress increases with TiB2 content due to grain boundary strengthening and Orowan looping. At 340 °C and 0.01 s−1, the 1 wt% TiB2 alloy shows peak stress approximately 20–30 MPa higher than the base alloy. This requires higher forming loads but improves shape retention and reduces risk of flow instability during hot working.
Does TiB2 addition suppress recrystallized grain coarsening after thermal deformation?
Yes. TiB2 particles effectively suppress coarsening of recrystallized grains. After deformation at 500 °C and 0.01 s−1, the 1 wt% TiB2 alloy exhibits an average recrystallized grain size of ~10 μm, which remains stable during post-deformation annealing, preserving fatigue resistance and mechanical integrity.
What are the optimal TiB2 content and processing parameters for balancing formability and performance?
0.1 wt% TiB2 provides significant grain refinement (35 μm) with moderate flow stress increase, suitable for general hot working. 1 wt% TiB2 offers maximum refinement (29 μm) and enhanced DRX but requires higher forming loads. Optimal parameters depend on application: for complex forgings, 0.1 wt% at 450–500 °C and 0.01–0.1 s−1 balances formability and properties; for high-strength components, 1 wt% at 500 °C and 0.01 s−1 maximizes performance.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
