Key Takeaways & Executive Findings
- •• • Distributed consensus ACE discovery enables each regulation unit to communicate only with adjacent units, eliminating the single-point failure sensitivity of centralized AGC and reducing computational complexity from O(n²) to O(n) per iteration, which is critical for maintaining frequency stability when communication infrastructure is partially damaged during disasters. • • Heterogeneous unit coordination is achieved through independent PI controllers tuned to each unit's dynamic response: gas turbines and diesel generators with slow ramp rates (governed by time constants T_GT1–T_GT4 and T_DG1–T_DG2) are coordinated with fast-response wind (T_WT), photovoltaic (T_PV), and fuel cell (T_FC) units, preventing the fast units from being curtailed by centralized allocation. • • The latter-half regulation strategy adjusts slow-response unit output to release fast-response unit capacity, reserving frequency regulation margin for subsequent cycles; this is analogous to state-of-charge management in storage systems and directly addresses the capacity depletion problem that occurs when fast units are continuously dispatched under sustained disturbances. • • The proposed method avoids the retraining requirement of multi-agent reinforcement learning approaches (e.g., DDPG, Q-learning) when extreme disasters cause generation unit failure or topology changes, providing a decisive operational advantage where retraining latency of minutes to hours would be unacceptable for real-time frequency control.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Extreme disasters compromise the coordinated frequency regulation of heterogeneous microgrid resources, as centralized automatic generation control (AGC) architectures exhibit single-point vulnerability, high computational burden, and limited scalability. This paper proposes a multi-agent distributed consensus-based cooperative AGC method. A distributed consensus multi-source AGC framework is constructed to enable cooperative secondary frequency regulation. A distributed consensus-based area control error (ACE) discovery algorithm is developed, allowing each regulation unit to communicate only with adjacent units and converge to a global ACE equilibrium. Each unit then participates in frequency regulation through an independently designed PI controller based on its dynamic response characteristics. During the latter half of the regulation period, the output power of slower-response units is adjusted to release the frequency response capability of faster-response units, reserving regulation capacity for subsequent cycles. Simulation models of gas turbines, diesel generators, wind turbines, photovoltaics, and hydrogen fuel cells are established in Matlab/Simulink. Results demonstrate that the proposed AGC method effectively coordinates heterogeneous regulation units, exhibits strong anti-interference capability under extreme disasters, and avoids the need for retraining associated with reinforcement learning approaches. The method offers reduced computational burden, high scalability, and resilience to single-point failures.
1. Introduction
Centralized AGC architectures, while effective under normal operating conditions, exhibit critical vulnerabilities under extreme disasters: they are sensitive to single-point failures, require global communication infrastructure that may be compromised, and impose a computational burden that scales poorly with the number of heterogeneous regulation units. Existing centralized PI controllers generate a total AGC command and then uniformly allocate it to individual units, which inherently limits the regulation capability of fast-response units such as wind turbines and photovoltaics. Game-theoretic approaches demand global communication and high computational complexity, making them impractical for disaster scenarios. Consensus-based methods offer local information exchange but their convergence speed depends on initial conditions and lacks disaster-scenario adaptability. Reinforcement learning methods require retraining when generation unit failures or topology changes occur, consuming substantial time that is unavailable during emergency frequency events.
This paper addresses these bottlenecks by proposing a multi-agent distributed consensus-based cooperative AGC method. A distributed consensus ACE discovery algorithm enables each regulation unit to communicate only with adjacent units and converge to a global ACE equilibrium, eliminating single-point failure sensitivity and reducing computational burden. Each unit participates in frequency regulation through an independently designed PI controller based on its own response speed. During the latter half of the regulation period, the output power of slower-response units is adjusted to reduce the output of faster-response units, reserving fast-unit frequency response capability for the next regulation cycle. The method is validated on a microgrid model comprising gas turbines, diesel generators, wind turbines, photovoltaics, and hydrogen fuel cells in Matlab/Simulink, demonstrating effective coordination of heterogeneous units and strong anti-interference capability under extreme disasters.

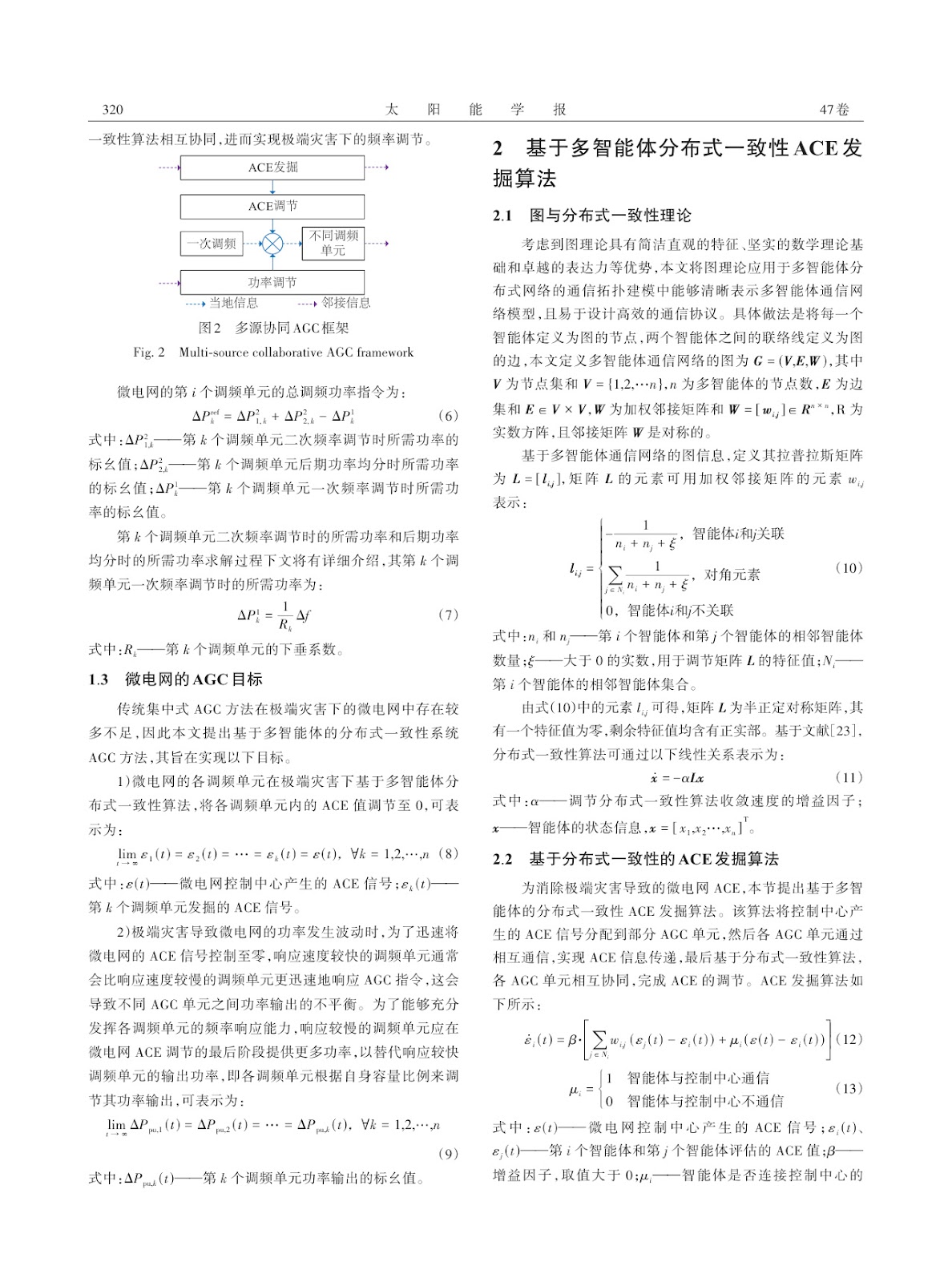

Loading authentic research manuscript (Pages 1–5)...
LI Yanyan, XUE Xian (2026). Distributed Consensus-Based Multi-Source Cooperative AGC Method for Microgrids Under Extreme Disasters. Acta Energiae Solaris Sinica. https://doi.org/10.19912/j.0254-0096.tynxb.202608_9691
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the convergence rate of the distributed consensus ACE discovery algorithm, and how does it degrade under communication delays or packet loss typical of disaster scenarios?
The paper does not report explicit convergence rate metrics (e.g., iterations to convergence, settling time) or quantify degradation under communication delays. The algorithm is designed for local information exchange among adjacent units, which inherently reduces communication burden compared to centralized or game-theoretic approaches. However, the absence of empirical convergence data under stressed communication conditions represents a gap that requires further validation before deployment in disaster-prone microgrids.
How does the proposed method handle the loss of a regulation unit (e.g., a gas turbine failure) without requiring retraining, and what is the impact on ACE convergence?
The distributed consensus framework enables each unit to discover ACE through local communication with adjacent units. When a unit fails, the remaining units continue to exchange information and converge to a new global ACE equilibrium without retraining, unlike reinforcement learning methods that require retraining when generation unit failures or topology changes occur. The paper states that the method has strong anti-interference capability under extreme disasters, but does not quantify the convergence time or frequency deviation following unit loss.
What are the specific time constants for each heterogeneous unit model, and how do they affect the coordination strategy?
The paper provides transfer function models: gas turbine G_GT(s) = (1+T_GT1 s)(1+T_GT2 s)/((1+T_GT3 s)(1+T_GT4 s)); diesel generator G_DG(s) = 1/((1+T_DG1 s)(1+T_DG2 s)); wind turbine G_WT(s) = 1/(1+T_WT s); photovoltaic G_PV(s) = 1/(1+T_PV s); fuel cell G_FC(s) = 1/(1+T_FC s). Specific numerical values for T_GT1–T_GT4, T_DG1–T_DG2, T_WT, T_PV, and T_FC are not provided in the extracted text. The coordination strategy uses these time constants to design independent PI controllers and to schedule slow-response units to release fast-response unit capacity in the latter half of the regulation period.
How does the latter-half regulation strategy compare quantitatively to conventional AGC in terms of frequency nadir improvement and regulation capacity reservation?
The paper does not report quantitative frequency nadir improvement or regulation capacity reservation metrics. The strategy is described qualitatively: during the latter half of the regulation period, the output power of slower-response units is adjusted to reduce the output of faster-response units, reserving fast-unit frequency response capability for the next regulation cycle. Without empirical data on frequency deviation reduction or reserved capacity (e.g., MW or percentage), the industrial impact cannot be assessed from the extracted text.
What is the computational burden of the proposed distributed consensus method compared to centralized AGC and reinforcement learning approaches?
The paper claims reduced computational burden and high scalability as advantages of the distributed consensus method, because each unit communicates only with adjacent units and does not require global communication or centralized optimization. In contrast, centralized methods suffer from computational complexity and single-point failure sensitivity, and reinforcement learning methods require retraining when topology changes. However, the paper does not provide quantitative computational metrics (e.g., execution time, number of operations, or scalability curves) to substantiate these claims.
