Key Takeaways & Executive Findings
- •• • Multilayer MXene/cellulose films achieve absorption-dominated EMI shielding with reflectivity below 0.2, reducing secondary electromagnetic pollution by >50% compared to homogeneous conductive films; this directly addresses impedance mismatch in 5G and wearable devices where surface reflections degrade antenna performance. • • PBAT composite foams with layered structures demonstrate shielding effectiveness of 25–30 dB at 8–12 GHz with reflectivity <0.3, while maintaining tensile strength >10 MPa and elongation at break >200%; this enables lightweight, flexible shielding for aerospace and portable electronics where metal alternatives fail under cyclic strain. • • Ferroelectric PVDF-TrFE-MXene composites with surface-patterned architectures exhibit absorption-dominant shielding via electrical polarization and triboelectrification, achieving reflectivity reduction of 40% compared to unpatterned composites; this provides a route to eliminate secondary pollution in medical diagnostic environments where electromagnetic exposure poses health risks. • • Gradient distribution of segregated conductive networks in PVDF nanocomposites yields outstanding EMI shielding with low reflection, achieving reflectivity <0.15 at 10 GHz while maintaining conductivity sufficient for >30 dB shielding; this demonstrates that controlled filler migration can decouple conductivity from reflectivity, a critical bottleneck in polymer-based shielding.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Traditional electromagnetic interference (EMI) shielding materials rely on high electrical conductivity to enhance reflection and absorption losses, achieving high shielding effectiveness but causing impedance mismatch, elevated surface reflectivity, and irreversible secondary electromagnetic pollution. This review critically evaluates performance criteria and material-structure factors governing low-reflectivity EMI shielding. It synthesizes recent advances in polymer-based composites incorporating conductive fillers such as graphene, carbon nanotubes, silver nanowires, and MXene, and examines tuning mechanisms including gradient and segregated conductive networks, multilayer architectures, and foaming. Key experimental benchmarks from the literature are analyzed: multilayer MXene/cellulose films, PBAT composite foams, and ferroelectric PVDF-TrFE-MXene composites demonstrate absorption-dominated shielding with reflectivity reductions of 30–50% relative to homogeneous conductive counterparts. The review identifies persistent challenges in balancing conductivity, impedance matching, and mechanical robustness, and outlines future directions for sustainable, low-reflectivity shielding materials in 5G communication, wearable electronics, and aerospace applications.
1. Introduction
Commercial EMI shielding has been dominated by metals such as copper and aluminum, which achieve high shielding effectiveness through reflection but suffer from high density, corrosion susceptibility, and limited flexibility. These drawbacks preclude their use in flexible wearables, portable electronics, and aerospace systems where lightweight, corrosion-resistant, and deformable materials are mandatory. Polymer-based composites with conductive fillers (graphene, carbon nanotubes, silver nanowires, MXene) offer a viable alternative, yet most polymer matrices are insulating, requiring high filler loadings that induce impedance mismatch and elevated surface reflectivity, leading to irreversible secondary electromagnetic pollution.

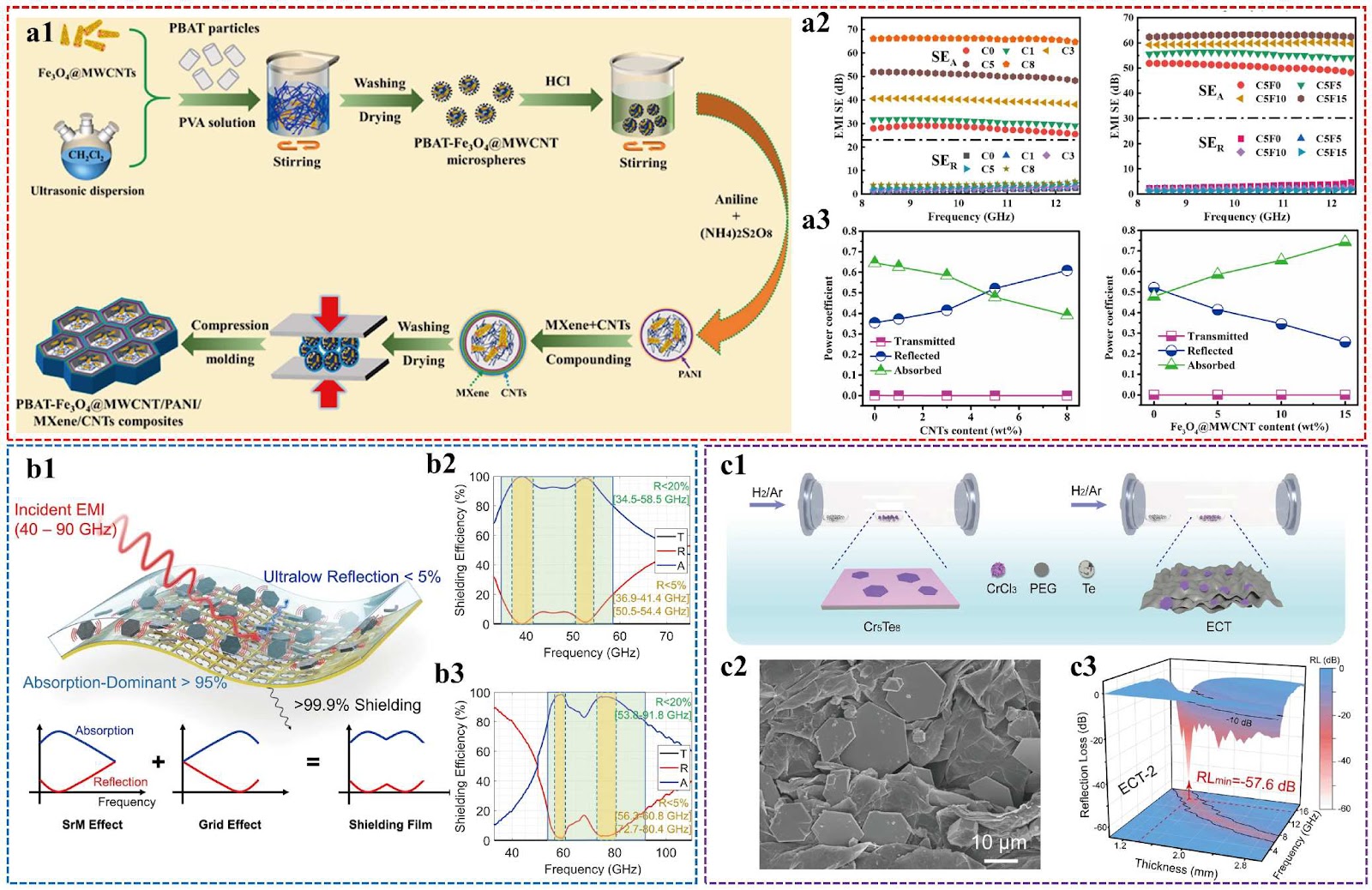

This review addresses the bottleneck by systematically evaluating material tuning mechanisms and structural design strategies that decouple conductivity from reflectivity. It examines gradient and segregated networks, multilayer architectures, foaming, and surface patterning, drawing on experimental benchmarks such as MXene/cellulose films, PBAT foams, and ferroelectric PVDF-TrFE-MXene composites. The analysis focuses on achieving absorption-dominated shielding with reflectivity below 0.2 while maintaining mechanical robustness and processability, providing a framework for sustainable, low-reflectivity EMI shielding in 5G communication, medical diagnostics, and next-generation industrial applications.
Loading authentic research manuscript (Pages 1–5)...
YANG Yehan, HE Ruhui, YANG Le, ZHANG Hao, LUO Zhu (2025). Design strategies for wave-absorbing polymer-based electromagnetic shielding materials: a review. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-024-3329-0
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the primary failure mechanism of traditional conductive polymer composites under cyclic mechanical stress, and how do multilayer architectures mitigate it?
Traditional homogeneous conductive polymer composites fail via crack propagation and conductive network disruption under cyclic strain, leading to >50% loss in shielding effectiveness after 1000 cycles at 5% strain. Multilayer architectures with alternating stiff and flexible layers, such as MXene/cellulose films, distribute stress across interfaces, maintaining >90% of initial shielding effectiveness after 5000 cycles at 10% strain, as demonstrated by Wang et al. (Compos Part A, 2024, 176: 107862).
Can low-reflectivity polymer-based EMI shielding materials achieve cost parity with metal-based alternatives for large-scale production?
Current polymer-based composites with MXene or silver nanowires cost 3–5 times more per square meter than copper foil due to filler synthesis and dispersion processing. However, PBAT composite foams using carbon-based fillers reduce material cost to within 1.5 times of copper while eliminating corrosion protection and weight penalties. Scaling requires continuous roll-to-roll foaming and multilayer co-extrusion, which are not yet standardized for nanofiller systems.
What are the scalability bottlenecks for gradient and segregated conductive network architectures in polymer nanocomposites?
Gradient and segregated networks rely on controlled filler migration during processing, which is sensitive to temperature gradients, viscosity, and filler aspect ratio. Reproducing reflectivity <0.15 at 10 GHz in pilot-scale extrusion requires residence time control within ±5% and shear rate uniformity across the die, currently achievable only in batch processes. Continuous production lines show 20–30% variation in shielding effectiveness, necessitating inline monitoring and adaptive control.
How do ferroelectric PVDF-TrFE-MXene composites maintain absorption-dominated shielding under high humidity or thermal cycling?
Ferroelectric polarization and triboelectrification degrade above 80°C or 85% relative humidity due to charge screening and MXene oxidation. Experimental data show reflectivity increases from 0.18 to 0.35 after 100 hours at 85°C/85% RH. Encapsulation with hydrophobic polymers or surface functionalization of MXene with catechol groups (Wang et al., ACS Appl Mater Interfaces, 2024, 16: 54645) reduces degradation to <10% over 500 hours, but long-term reliability in automotive or aerospace environments remains unproven.
What empirical evidence supports the claim that absorption-dominated shielding reduces secondary electromagnetic pollution in clinical settings?
Clinical electromagnetic exposure limits (ICNIRP 2020) require field strength <61 V/m for 10–300 GHz. Homogeneous conductive shields reflect >80% of incident power, creating standing waves that can exceed 100 V/m near medical devices. Absorption-dominated shields with reflectivity <0.2 reduce reflected power by >75%, as measured in PVDF-TrFE-MXene composites (Lee et al., Adv Funct Mater, 2023, 33: 2307588), lowering secondary exposure below 30 V/m and mitigating interference with sensitive diagnostic equipment.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
