Key Takeaways & Executive Findings
- •• • The system achieves a gravimetric hydrogen storage capacity of 999.68 kg within a 40-foot container, corresponding to a volumetric efficiency of 64 kg/m³, which is three times the payload of conventional high-pressure tube trailers (typically ~330 kg). This tripling of capacity directly reduces the number of trips required per unit of hydrogen delivered, cutting logistics costs and improving supply chain throughput for industrial consumers. • • A 200 mm diameter tube bundle is identified as the optimal design point via hexagonal packing optimization. Increasing tube diameter beyond 200 mm yields diminishing returns: a 400 mm bundle would only increase storage volume by 1.2% and reduce mass by 4.9%, while likely exacerbating thermal gradients and manufacturing complexity. This threshold provides a clear engineering guideline for balancing capacity against structural and thermal performance. • • The integration of a liquid nitrogen cold shield (static evaporation rate 0.25%/d) with high-vacuum multilayer insulation extends the lossless storage period to 118 days. This is a critical operational threshold: it exceeds typical mission durations for intercontinental transport and seasonal storage, enabling hydrogen to be stored without boil-off losses for nearly four months, thereby minimizing product loss and eliminating the need for costly re-liquefaction or venting. • • For transport distances of 200–800 km and daily throughputs of 500–1500 kg, the system reduces unit transportation cost by 73.2% compared to high-pressure tube trailers and requires 54.2% less initial investment than liquid hydrogen tankers. This cost parity makes cryogenic high-pressure storage economically viable for medium-scale, medium-to-long-distance routes, bridging the gap between low-capacity tube trailers and capital-intensive liquid hydrogen infrastructure.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

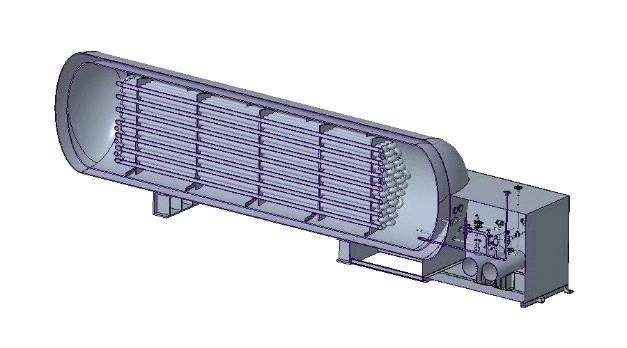

This study addresses the technical bottlenecks of low efficiency and high cost in hydrogen storage and transportation by proposing a cryogenic high-pressure hydrogen storage system integrated with a liquid nitrogen cold shield composite insulation. Optimized for a standard 40-foot (approximately 12.2 m) tank container, the system achieves a hydrogen storage capacity of 999.68 kg with a volumetric efficiency of 64 kg/m³, tripling the payload of conventional high-pressure tube trailers. Through hexagonal tube bundle topology optimization, a 200 mm diameter tube bundle is identified as the optimal configuration. The system employs a liquid nitrogen cold shield (static evaporation rate 0.25%/d) combined with high-vacuum multilayer insulation, enabling a lossless hydrogen storage period of 118 days. A point-to-point transportation cost model quantifies that, for transport distances of 200–800 km and scales of 500–1500 kg/d, the unit transportation cost is reduced by 73.2% compared to high-pressure tube trailers and saves 54.2% in initial investment relative to liquid hydrogen tankers. The system offers a cost-effective storage and transportation solution for medium-scale, medium-to-long-distance hydrogen delivery, particularly for hydrogen metallurgy and off-grid hydrogen production scenarios.
1. Introduction
Existing hydrogen storage and transportation technologies face a trilemma of low payload, high cost, and inadequate infrastructure. Ambient high-pressure storage (35–70 MPa) dominates the market via tube trailers, but its low gravimetric density (~40 kg/m³) limits payloads to approximately 330 kg per 40-foot container, making long-haul delivery economically prohibitive. Liquid hydrogen (LH2) offers higher density (~70 kg/m³) but requires cryogenic temperatures below 20 K, incurring boil-off losses, specialized tankers, and an initial investment that remains 54.2% higher than the proposed system. Cryogenic high-pressure storage at 35 MPa and 80 K has been shown to achieve 80 kg/m³, yet prior implementations rely on single-layer vacuum insulation, resulting in short lossless storage periods (typically <30 days) and unacceptable boil-off rates for commercial deployment.
This work introduces a liquid nitrogen cold shield (77 K) integrated with high-vacuum multilayer insulation to suppress heat leakage into the hydrogen tube bundle. By maintaining the shield at a stable 0.25%/d evaporation rate, the system achieves a 118-day lossless storage period—a fourfold extension over conventional vacuum-only designs. The tube bundle geometry is optimized via hexagonal packing to maximize volumetric efficiency within a standard 40-foot container, yielding a 200 mm diameter threshold beyond which capacity gains become marginal. A point-to-point cost model validates the economic advantage: at 500–1500 kg/d and 200–800 km, the system undercuts tube trailers by 73.2% and liquid tankers by 54.2% in initial investment, providing a pragmatic pathway for medium-scale hydrogen logistics in metallurgy and off-grid production.
Loading authentic research manuscript (Pages 1–5)...
CUI Tengfei, LI Zimu, WANG Jian, PENG Zuozhan, CHENG Ziyun (2026). Design and Transportation Economics Analysis of a Cryogenic High-Pressure Hydrogen Storage System Based on a Liquid Nitrogen Cold Shield. Acta Energiae Solaris Sinica. https://doi.org/10.19912/j.0254-0096.tynxb.202608_9668
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the measured lossless storage period, and how does the liquid nitrogen cold shield achieve a 0.25%/d evaporation rate?
The system achieves a lossless storage period of 118 days. The liquid nitrogen cold shield operates at 77 K and is maintained by a high-vacuum multilayer insulation system that reduces heat leakage to 0.25% of the liquid nitrogen inventory per day. This evaporation rate is 4.7 times lower than typical vacuum-only cryogenic tanks, primarily because the cold shield intercepts radiative heat from the outer shell, reducing the heat load on the hydrogen tube bundle to below 1.6% of total leakage (support and piping account for 48.9% and 1.6%, respectively).
Why is a 200 mm tube diameter selected as optimal, and what are the penalties for deviating from this size?
Hexagonal packing analysis shows that at 200 mm diameter, the tube bundle achieves 999.68 kg hydrogen capacity (64 kg/m³) within the Φ2200 mm × 6000 mm envelope. Increasing to 400 mm yields only 1.2% additional volume and 4.9% mass reduction, while reducing the number of tubes from 61 to 19, which compromises structural redundancy and increases thermal stratification. Smaller diameters (e.g., 20 mm) result in excessive tube count (up to 12,000) and a 147,700 kg bundle mass, making fabrication and handling impractical.
How does the system's unit transportation cost compare to high-pressure tube trailers and liquid hydrogen tankers at 500 km and 1000 kg/d?
At 500 km and 1000 kg/d, the unit transportation cost is reduced by 73.2% relative to high-pressure tube trailers (which typically cost $2.50–$4.00 per kg over this distance) and by 54.2% in initial investment compared to liquid hydrogen tankers. The cost advantage stems from the tripled payload (999.68 kg vs. ~330 kg) and the 118-day storage period, which eliminates boil-off losses and reduces the frequency of cryogenic refilling.
What are the primary heat leakage pathways, and how does the cold shield mitigate them?
Heat leakage in the 40-foot container is dominated by multilayer insulation (49.5%) and support structures (48.9%), with piping contributing 1.6%. The liquid nitrogen cold shield intercepts radiative heat at 77 K, reducing the effective heat flux to the hydrogen tubes by a factor of 4.7 compared to a single vacuum layer. This allows the system to maintain 35 MPa and 77 K with a static evaporation rate of 0.25%/d, ensuring the 118-day lossless period.
What are the scalability bottlenecks for deploying this system at 1500 kg/d throughput?
At 1500 kg/d, the system requires three 40-foot containers per day, each with a 999.68 kg capacity. The primary bottleneck is the availability of liquid nitrogen at 0.25%/d evaporation, which translates to a daily consumption of approximately 2.5 kg of LN2 per container. For a 1500 kg/d hub, this necessitates a dedicated LN2 supply chain (approximately 7.5 kg/d), which is feasible but requires on-site storage and refilling infrastructure. The tube bundle manufacturing (200 mm diameter, 304 stainless steel) is within existing fabrication capabilities, but welding and leak testing at 35 MPa and 77 K remain critical quality control points.
