Key Takeaways & Executive Findings
- •• • Nitrogen annealing (reducing ambient) increases electron concentration from 6.37×10^17 cm^-3 to 7.48×10^18 cm^-3, a 11.7-fold rise, while raising interface state density (Dit) to 3.36×10^15 eV^-1 cm^-2; this enables degenerate n-type Ga2O3 for low-resistance Ohmic contacts, critical for reducing conduction losses in power switching devices. • • Air annealing (oxidizing ambient) reduces electron concentration to 3.01×10^16 cm^-3 and suppresses Dit to 1.74×10^14 eV^-1 cm^-2, a 19.3-fold reduction versus nitrogen-annealed samples; this yields a highly resistive layer suitable for current blocking layers (CBL) in vertical MOSFETs, directly addressing the need for enhancement-mode operation. • • The ET2 trap (VGa-VO complex) density increases from 6.13×10^15 to 1.1×10^16 cm^-3 after nitrogen annealing, while ET1 (VGa) is reduced; this defect transformation converts deep acceptors into neutral complexes, mitigating compensation and enabling controllable carrier concentration—essential for reproducible doping in Ga2O3 epitaxy. • • FeGa-related ET3 (EC−0.84 eV) is concentrated near the surface and its detectability is enhanced by nitrogen annealing due to Fermi-level-induced reduction of formation energy; air annealing suppresses ET3, demonstrating that thermal budget directly modulates unintentional Fe contamination, a key reliability concern for high-field devices.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

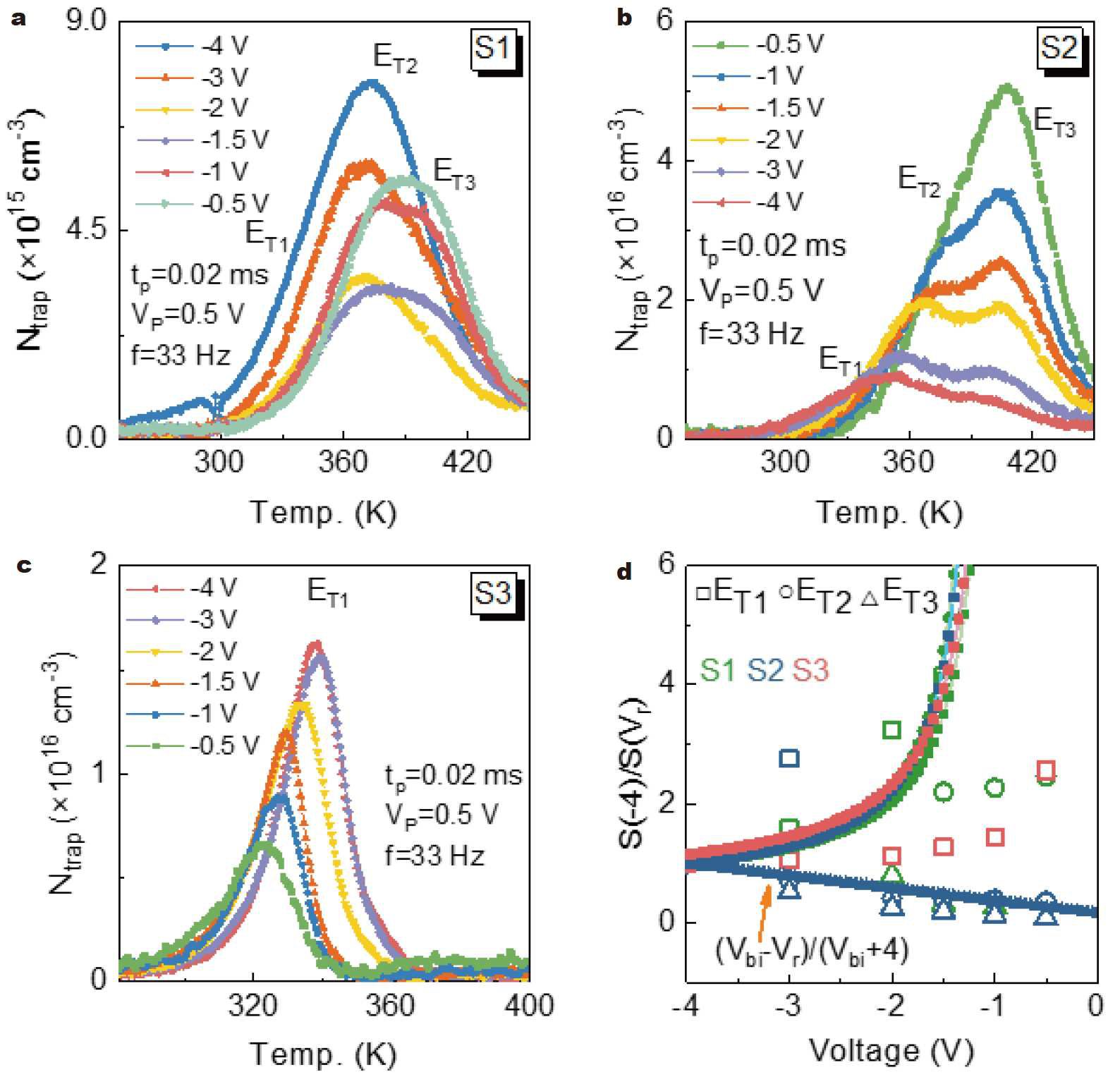

Defect engineering is pivotal in comprehending physical mechanisms that govern carrier transport and device performance. The defect evolution and carrier manipulation in Sn-doped Ga2O3 bulk crystals subjected to different thermal treatments were investigated, utilizing depth-profiled deep-level transient spectroscopy (DLTS) and frequency-dependent capacitance-voltage (C-V-f) techniques. In untreated Sn-doped Ga2O3 with an electron concentration of 6.37×10^17 cm^-3, two dominant electron traps, ET1 (EC−0.68 eV) and ET2 (EC−0.76 eV), were identified, corresponding to gallium vacancy (VGa) and the neutral complex of VGa-VO, respectively, and characterized as bulk traps. FeGa-related defects, ET3 (EC−0.84 eV), were concentrated near surface. Nitrogen annealing significantly reduced ET1, increased ET2 density from 6.13×10^15 to 1.1×10^16 cm^-3, and raised the interfacial state density (Dit) to 3.36×10^15 eV^-1 cm^-2, accompanied by an elevated electron concentration of 7.48×10^18 cm^-3. In contrast, air annealing enhanced ET1, with a density of 1.42×10^16 cm^-3, suppressed of ET2/ET3 traps, resulting in a lower Dit of 1.74×10^14 eV^-1 cm^-2, and a reduced electron concentration to 3.01×10^16 cm^-3. The findings reveal that a reducing environment induces VO formation and converts discrete VGa acceptors into neutral VGa-VO complexes, leading to downward surface band bending and electron accumulation. Conversely, VGa-VO complexes are dissociated into VGa acceptors in oxidizing conditions, leading to an upward surface band bending and electron compensation. This work underscores the carrier concentration manipulation by defect engineering in Ga2O3, offering insights essential for developing high-performance gallium oxide electronics.
1. Introduction
Commercial deployment of ultra-wide bandgap Ga2O3 power electronics has been stalled by the inability to reliably control carrier concentration and surface band bending. Unintentional n-type conductivity, typically in the 10^17–10^18 cm^-3 range, prevents the formation of semi-insulating current blocking layers (CBL) required for enhancement-mode MOSFETs. Existing approaches—solid-state diffusion of acceptors via oxygen annealing or ion implantation of N and Mg—suffer from poor reproducibility, low activation efficiency, and surface damage. The absence of a spectroscopic understanding of how deep-level defects evolve under thermal treatment has left device engineers without a predictive framework for tuning conductivity.
This study addresses the bottleneck by systematically correlating thermal ambient (nitrogen vs. air) with depth-profiled deep-level transient spectroscopy (DLTS) and frequency-dependent capacitance-voltage (C-V-f) data on Sn-doped β-Ga2O3 (100) single crystals. The authors quantify the interconversion between gallium vacancy (VGa) acceptors and neutral VGa-VO complexes, and link these defect reactions to surface band bending and carrier profiles. The resulting process-structure-property relationships provide a rational basis for engineering Ohmic contacts or resistive layers, directly impacting the design of high-performance gallium oxide electronics.
Loading authentic research manuscript (Pages 1–5)...
Jiahao Yao, Yiyuan Liu, Zhaoxuan Fang, Zhengpeng Wang, Na Sun, Hehe Gong, Wenxiang Mu, Zhitai Jia, Xutang Tao, Fangfang Ren, Shulin Gu, Rong Zhang, Jiandong Ye (2025). Deep-level defects and carrier manipulation in Sn-doped β-Ga2O3 (100) single crystals. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3387-6
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the dominant failure mechanism when Ga2O3 power devices are subjected to high-temperature reducing environments?
Nitrogen annealing at elevated temperatures generates oxygen vacancies (VO) that compensate VGa acceptors by forming neutral VGa-VO complexes. This increases electron concentration to 7.48×10^18 cm^-3 and raises interface state density to 3.36×10^15 eV^-1 cm^-2, causing downward band bending and electron accumulation. The resulting degenerate surface can lead to uncontrolled leakage and loss of gate control in MOSFETs.
How does air annealing compare to nitrogen annealing in terms of defect suppression and resistivity control?
Air annealing (oxidizing) annihilates VO donors and enhances gallium out-diffusion, increasing VGa concentration. It suppresses ET2/ET3 traps, reduces Dit to 1.74×10^14 eV^-1 cm^-2, and lowers electron concentration to 3.01×10^16 cm^-3. This produces a highly resistive layer suitable for current blocking, whereas nitrogen annealing yields a conductive, degenerate surface.
What is the quantitative impact of Fermi level position on FeGa-related ET3 defect formation?
Nitrogen annealing raises carrier concentration, shifting the Fermi level closer to the conduction band and reducing FeGa formation energy, which enhances ET3 detectability. Air annealing reduces carrier concentration, pushing the Fermi level away from the conduction band, increasing FeGa formation energy and suppressing ET3 to near disappearance. This demonstrates that thermal budget directly controls unintentional Fe contamination.
Can these defect engineering strategies be scaled to production-grade Ga2O3 substrates without compromising crystal quality?
The study uses bulk single crystals and depth-profiled DLTS, showing that defect evolution occurs within the first 200 nm near surface and up to 6 μm in bulk. Nitrogen annealing for 24 h is practical for forming Ohmic contacts, while air annealing above 1400°C generates resistive layers. Scalability depends on controlling annealing atmosphere and temperature uniformity, but the observed defect interconversion is reversible and reproducible, indicating potential for industrial adoption.
What are the implications of the ET1 and ET2 trap densities for device reliability under high-field stress?
ET1 (VGa) at EC−0.68 eV and ET2 (VGa-VO) at EC−0.76 eV are bulk traps. Nitrogen annealing reduces ET1 but increases ET2 to 1.1×10^16 cm^-3, which can act as trapping centers under high field, causing dynamic on-resistance degradation. Air annealing increases ET1 to 1.42×10^16 cm^-3 but suppresses ET2, potentially trading off bulk trapping for surface depletion. Device design must balance these trap densities to mitigate reliability risks.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
