Key Takeaways & Executive Findings
- •• • BiOI-TC with twin crystal defects achieves a CH3CH2OH evolution rate of 6.2 μmol g−1 h−1 with 100% selectivity, a 12-fold increase over pristine BiOI, directly enabling high-purity ethanol production from CO2. • • The introduction of twin crystals enhances light absorption, CO2 adsorption, charge transfer efficiency, and carrier lifetime, as confirmed by UV-Vis, chemisorption, and PL spectroscopy, addressing the bottleneck of poor charge dynamics in BiOI. • • In situ FTIR identifies *COOH, *CO, *COCO, *CHO, and *CH2 as key intermediates for CH3CH2OH generation, while *CH3 (1456 cm−1) is uniquely detected on BiOI-LD, steering selectivity toward C2H6 and demonstrating defect-mediated pathway control. • • EPR spectroscopy shows increased superoxide radical generation in BiOI-TC, correlating with higher reactivity; this radical-mediated mechanism contributes to the 12-fold activity boost and 100% ethanol selectivity.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
BiOI photocatalysts exhibit potential for CO2 reduction, but suffer from insufficient CO2 activation and poor charge carrier dynamics, limiting conversion efficiency. This study introduces abundant crystal defects into BiOI via pH modulation of the synthesis solution. X-ray diffraction (XRD), Raman spectroscopy, and high-resolution transmission electron microscopy (HRTEM) confirm lattice distortions in BiOI-LD and twin crystals in BiOI-TC. Ultraviolet-visible spectroscopy, micropore and chemisorption analyses, and photoluminescence spectroscopy reveal that these defects enhance light absorption, CO2 adsorption capacity, charge transfer efficiency, and carrier lifetime. Electron paramagnetic resonance (EPR) spectroscopy indicates increased superoxide radical generation in BiOI-TC, correlating with higher reactivity. BiOI-TC achieves a CH3CH2OH evolution rate of 6.2 μmol g−1 h−1 with 100% selectivity, a 12-fold enhancement over pristine BiOI. In situ FTIR identifies key intermediates (*COOH, *CO, *COCO, *CHO, *CH2) for ethanol production, while *CH3 is linked to C2H6 formation in BiOI-LD. This work demonstrates that crystal defect engineering effectively tunes product selectivity and activity in photocatalytic CO2 reduction.
1. Introduction
Photocatalytic CO2 reduction to C2 products such as ethanol and ethane offers a sustainable route to solar fuels, but commercial viability is hindered by the high dissociation energy of the C=O bond (750 kJ mol−1) and sluggish multi-electron transfer kinetics. Existing photocatalysts, including pristine BiOI, suffer from limited CO2 activation and rapid charge carrier recombination, resulting in low conversion efficiencies and poor product selectivity. Defect engineering has emerged as a promising strategy to tailor electronic and physicochemical properties, yet the precise role of specific defect types—such as lattice distortions versus twin crystals—in directing C2 product selectivity remains inadequately understood.

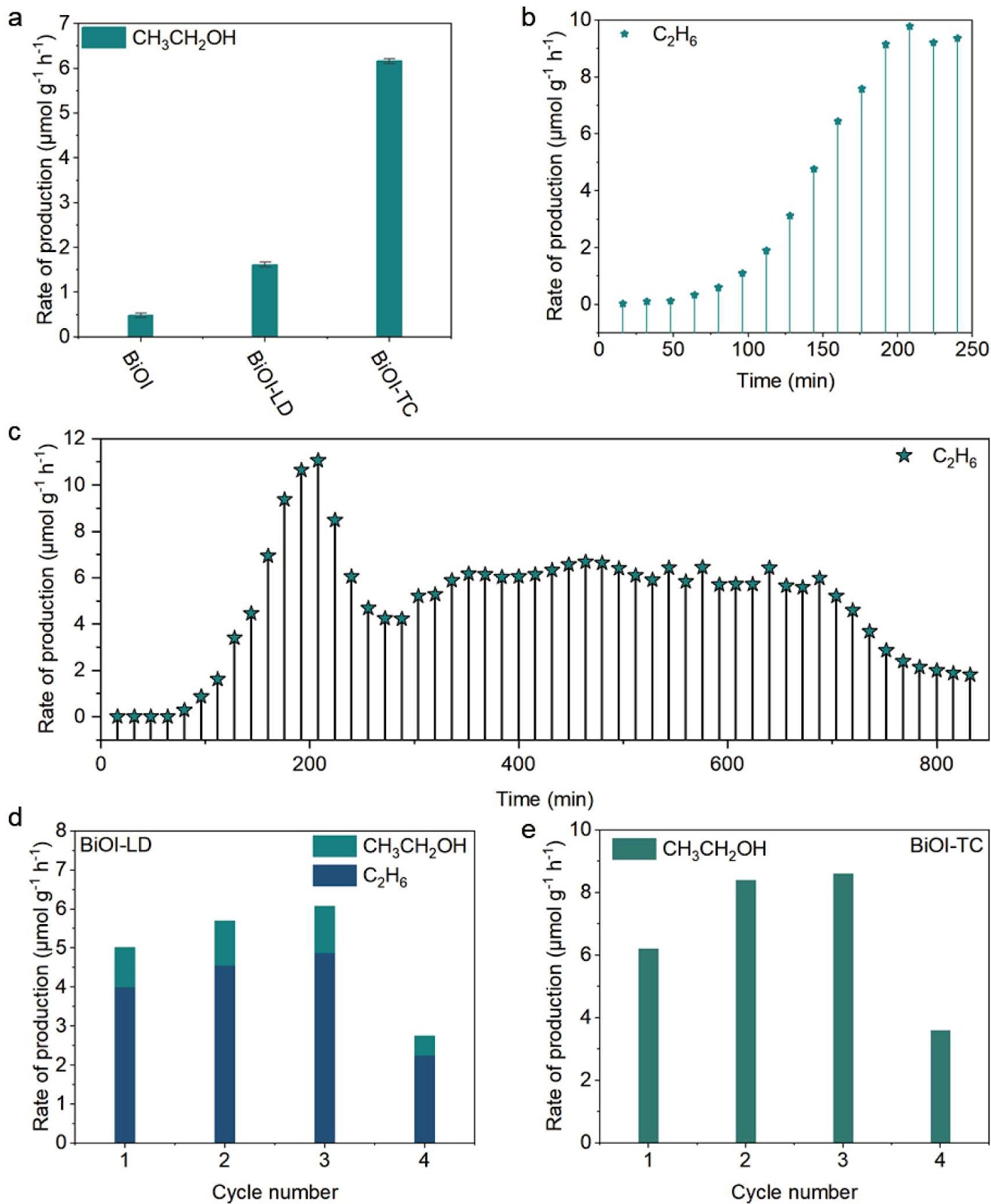

This study addresses these bottlenecks by systematically engineering crystal defects in BiOI through pH modulation of the synthesis solution. Lattice distortions (BiOI-LD) and twin crystals (BiOI-TC) are selectively introduced, and their impact on light absorption, CO2 adsorption, charge transfer, and carrier lifetime is quantified. The protocol enables a 12-fold enhancement in ethanol evolution rate (6.2 μmol g−1 h−1) with 100% selectivity on BiOI-TC, while BiOI-LD promotes C2H6 formation via a *CH3 intermediate. These findings establish a direct correlation between defect type and reaction pathway, providing a rational design principle for high-selectivity CO2 photoreduction catalysts.
Loading authentic research manuscript (Pages 1–5)...
Fuxia Huang, Yifei Liu, Feng Wang, Ya Liu, Liejin Guo (2025). Crystal defects engineering of BiOI elevated photocatalytic CO2 to C2 conversion performance. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-024-3290-9
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the long-term stability of BiOI-TC under continuous photocatalytic CO2 reduction, and what degradation mechanisms are observed?
The paper does not report extended stability tests beyond the reported 6.2 μmol g−1 h−1 ethanol evolution rate. However, BiOI is known to suffer from photocorrosion under prolonged irradiation. The twin crystal defects may act as recombination centers or initiation sites for degradation, but this requires further investigation. Industrial deployment would necessitate stability tests exceeding 100 hours with periodic product quantification.
How does the ethanol selectivity of BiOI-TC compare to state-of-the-art photocatalysts, and what is the cost parity against legacy thermal catalytic processes?
BiOI-TC achieves 100% selectivity for CH3CH2OH with a rate of 6.2 μmol g−1 h−1, which is competitive among reported BiOI-based systems but lower than some noble-metal-loaded TiO2 or Cu-based photocatalysts. Cost parity with thermal processes (e.g., methanol synthesis at 50–100 bar, 200–300 °C) is not yet achieved due to low quantum efficiency and the use of expensive Bi precursors. Economic viability would require at least a 10-fold increase in production rate and utilization of solar concentrators.
What are the scalability bottlenecks for synthesizing BiOI-TC with twin crystal defects, particularly regarding pH control and batch reproducibility?
The synthesis relies on precise pH modulation to induce twin crystals, which may be sensitive to local pH gradients in large-scale reactors. Batch-to-batch reproducibility of defect density and twin boundaries is critical; the paper does not provide statistical data on multiple batches. Scale-up would require in-line pH monitoring and mixing to ensure uniform defect formation. Additionally, the use of iodide precursors may pose environmental handling challenges.
What is the quantum efficiency of BiOI-TC at relevant wavelengths, and how does it compare to the apparent quantum yield (AQY) reported for other CO2 reduction photocatalysts?
The paper does not report AQY or quantum efficiency values. The 12-fold enhancement over pristine BiOI is based on ethanol evolution rate, but without AQY, direct comparison to other systems is limited. For industrial relevance, AQY at 400–500 nm should exceed 1% to be considered viable. Future work should include wavelength-dependent AQY measurements to assess photon utilization.
How do the twin crystal defects in BiOI-TC influence the adsorption energy of CO2 and key intermediates, and can this be tuned to further improve C2 selectivity?
The paper demonstrates enhanced CO2 adsorption via chemisorption analysis but does not provide DFT calculations of adsorption energies. The presence of twin boundaries likely creates undercoordinated Bi sites that strengthen CO2 binding and stabilize *COCO intermediates. Tuning defect density could shift selectivity toward C2H6 or CH4, but this requires systematic variation of pH and defect characterization. The *CH3 intermediate on BiOI-LD suggests that lattice distortions favor C–C coupling termination, offering a lever for selectivity control.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
