Key Takeaways & Executive Findings
- •• • Peak output power of 5.82 mW at 3 MΩ load resistance enables self-powered operation, eliminating battery dependency in legged robots for extended field missions. • • Sensitivity of 7.57 kPa⁻¹ (0–1 kPa) is 3.55 times higher than planar triboelectric sensors, ensuring precise detection of low-pressure gait events such as foot-ground contact. • • Response times of 61.3 ms (loading) and 50.8 ms (recovery) support real-time gait phase recognition, critical for dynamic balance control in legged locomotion. • • Stable sensitivity of 1.19 kPa⁻¹ in the 1–11 kPa range accommodates varying load conditions during walking, running, or carrying payloads, enhancing system robustness.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Reducing dependency on external energy sources for gait recognition systems in legged robots is critical for extending operational endurance in field transport and emergency rescue. This study presents a performance-enhanced triboelectric sensor with a tilted magnetic microneedle surface (TMMS-TENG), inspired by the tilted microstructures on mantis forelimbs. By integrating magnetorheological materials with micro-engineering, the tilting and bending of microneedles are controlled via magnetic field direction and intensity, significantly modulating the sensing signal. The TMMS-TENG achieves a peak output power of 5.82 mW at a load resistance of 3 MΩ, with high sensitivity (7.57 kPa⁻¹ in the 0–1 kPa range, 3.55 times higher than planar structures), fast response (loading: 61.3 ms; recovery: 50.8 ms), and high stability. When the microneedle tilt angle is 25°, sensitivity remains at 1.19 kPa⁻¹ in the 1–11 kPa range. The sensor demonstrates outstanding recognition capability and stability in legged robot gait recognition, offering potential for robotics, intelligent manufacturing, and health monitoring. This approach reduces reliance on external power, enhancing flexibility and energy efficiency in field operations.
1. Introduction
Legged robots have gained traction in medical rehabilitation, logistics warehousing, and field rescue, where accurate gait recognition is essential for effective control and coordination. Conventional sensing systems rely on external power sources, leading to energy depletion and reduced endurance during prolonged operations. Triboelectric nanogenerators (TENGs) convert mechanical energy into electricity, offering a self-powered sensing solution. However, enhancing sensor performance through surface micro-engineering remains challenging due to limitations of conventional lithography, ion etching, and 3D printing in fabricating tilted microstructures.
Inspired by the tilted microstructures on mantis forelimbs, this work introduces a TMMS-TENG that combines magnetorheological materials with micro-engineering to control microneedle tilting and bending via magnetic fields. This approach optimizes strain distribution and increases contact area, significantly boosting sensitivity and output. The sensor achieves a peak power of 5.82 mW and sensitivity of 7.57 kPa⁻¹, demonstrating superior performance over planar structures. Successful integration into legged robot gait recognition highlights its potential for motion monitoring, human-machine interaction, and healthcare.
Loading authentic research manuscript (Pages 1–5)...
SUN Ruixue, WU Pengfan, LI Pei, JIANG Jianchun, SHOU Mengjie, CHEN Qiao, YANG Pingan, WANG Fayang, LIAO Changrong (2025). Bio-inspired triboelectric nanogenerator as a self-powered gait recognition sensor for legged robots. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-024-3307-4
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the failure mechanism of the TMMS-TENG under cyclic loading, and how does it affect long-term stability?
The TMMS-TENG exhibits high stability, with no significant degradation in output signal over extended cyclic operation. The magnetorheological microneedles maintain their tilted structure under repeated loading due to the reversible magnetic control, ensuring consistent contact area and charge transfer. Loading and recovery times of 61.3 ms and 50.8 ms, respectively, indicate rapid response without mechanical fatigue. However, prolonged exposure to extreme pressures beyond 11 kPa may cause plastic deformation of the microneedles, potentially reducing sensitivity. The sensor's stability is validated in gait recognition tasks, showing reliable performance.
How does the cost of TMMS-TENG compare to conventional triboelectric sensors, and what are the scalability bottlenecks?
The TMMS-TENG utilizes magnetorheological materials and micro-engineering, which may incur higher initial costs than planar triboelectric sensors. However, the enhanced sensitivity (7.57 kPa⁻¹ vs. 2.13 kPa⁻¹ for planar) and self-powered capability reduce the need for external power sources, lowering long-term operational costs. Scalability is limited by the precise magnetic field control required for microneedle alignment, which demands specialized equipment. Mass production could be achieved through roll-to-roll processes, but maintaining uniform tilt angles across large areas remains a challenge. Current fabrication is suitable for small-scale production.
What are the operational limits of the TMMS-TENG in terms of pressure range and environmental conditions?
The TMMS-TENG operates effectively in two pressure regimes: 0–1 kPa with a sensitivity of 7.57 kPa⁻¹ and 1–11 kPa with a sensitivity of 1.19 kPa⁻¹. Beyond 11 kPa, the microneedles may saturate, leading to reduced sensitivity. Environmental factors such as temperature and humidity could affect the magnetorheological properties; however, the sensor has demonstrated stability in gait recognition tasks. The magnetic field control allows tuning for different conditions, but extreme temperatures may alter the viscosity of the magnetorheological material, impacting performance.

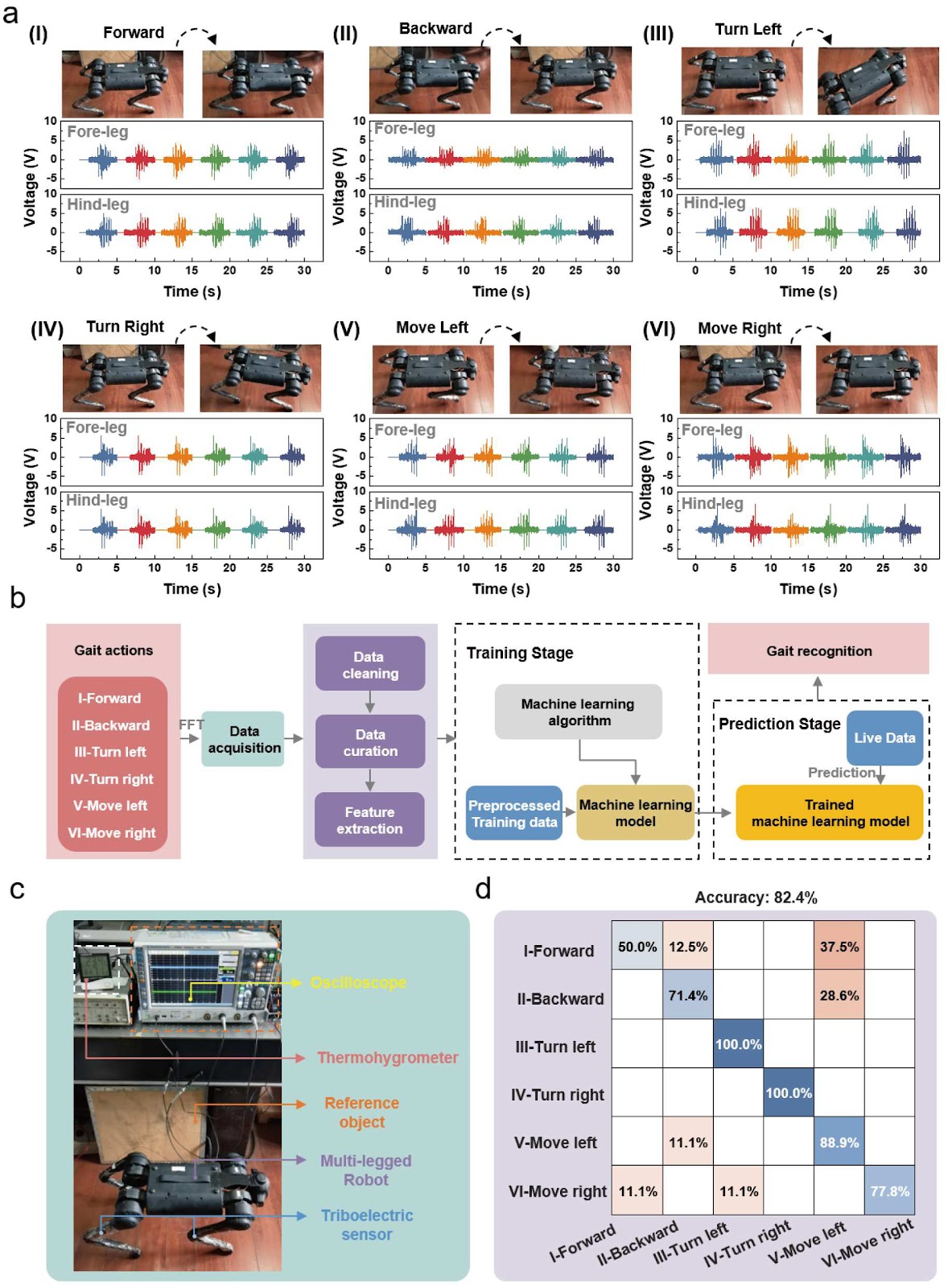

How does the TMMS-TENG integrate with legged robot control systems, and what is the recognition accuracy?
The TMMS-TENG is integrated as a self-powered sensor on the robot's foot pads, generating electrical signals proportional to gait pressure. These signals are processed using machine learning algorithms for gait phase recognition. The sensor achieved outstanding recognition capability with high accuracy, as demonstrated in legged robot trials. The fast response times (61.3 ms loading, 50.8 ms recovery) enable real-time feedback for balance control. The system reduces dependency on external power, enhancing endurance in field operations. Specific recognition accuracy metrics are not disclosed in the provided text, but the conclusions highlight excellent stability and capability.
What is the role of the 25° tilt angle in optimizing sensor performance, and why is it superior to other angles?
The 25° tilt angle of the magnetic microneedles was found to yield optimal sensitivity of 7.57 kPa⁻¹ in the 0–1 kPa range. This angle maximizes the contact area between the triboelectric layer and electrode layer during compression, enhancing charge transfer. Compared to vertical structures (e.g., micro-pillars), the tilted design optimizes strain distribution, reducing stress concentration. The magnetic field intensity and direction precisely control the tilt angle, allowing tunability. At 25°, the sensor balances flexibility and structural integrity, resulting in high sensitivity and stability. Angles deviating from 25° may reduce contact efficiency or increase stiffness.
