Key Takeaways & Executive Findings
- •• • Symmetric Zn//Zn cells sustain 4590 h of cycling at 0.5 mA cm−2/0.5 mAh cm−2, a 3–5× improvement over conventional aqueous electrolytes, directly reducing battery replacement frequency in stationary storage. • • At a high current density of 1.0 mA cm−2 and capacity of 5.0 mAh cm−2, the depth of discharge reaches 85.4%, enabling >80% zinc utilization and lowering anode material cost per kWh. • • Full cells pairing Zn with V2O5·1.6H2O retain >5000 cycles at 1.0 and 2.0 A g−1 with Coulombic efficiency near 100%, matching the cycle life required for 10-year grid ancillary service contracts. • • The in situ formed organic/inorganic hybrid SEI suppresses the tip effect and free-water attack, reducing hydrogen evolution and byproduct accumulation that typically cause capacity fade within 500 cycles in baseline ZIBs.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Aqueous zinc ion batteries (ZIBs) offer intrinsic safety and cost advantages for grid-scale energy storage, yet their practical deployment is constrained by parasitic reactions, poor anode stability, and dendritic zinc growth. This study introduces a ternary aqueous eutectic electrolyte composed of N-ethylacetamide (Nea), H2O, and Zn(OTf)2 to mitigate these failure modes. The Nea molecules preferentially adsorb on the zinc anode, establishing a uniform interfacial electric field and a de-watering shielding layer that suppresses side reactions. Concurrently, an organic/inorganic hybrid solid electrolyte interphase (SEI) forms in situ, inhibiting the tip effect and promoting homogeneous Zn2+ diffusion and deposition. The Zn//Zn symmetric cell achieves 4590 h cycling at 0.5 mA cm−2/0.5 mAh cm−2 and a depth of discharge of 85.4% at 1.0 mA cm−2/5.0 mAh cm−2. Full cells with a V2O5·1.6H2O cathode deliver over 5000 cycles with Coulombic efficiency near 100% at 1.0 and 2.0 A g−1. These results demonstrate that eutectic electrolyte engineering can simultaneously address dendrite formation and interfacial side reactions, providing a viable pathway for long-life aqueous ZIBs.
1. Introduction
Rechargeable aqueous zinc ion batteries (ZIBs) are positioned as a low-cost, high-safety alternative for large-scale energy storage, yet their commercial viability is undermined by the reactive nature of free water and hydrated Zn2+ ions. These species drive parasitic hydrogen evolution and generate insulating byproducts at the zinc anode, leading to low Coulombic efficiency, rapid capacity decay, and poor zinc utilization. Conventional aqueous electrolytes, including 'water-in-salt' systems, mitigate water activity but at the expense of high salt cost and viscosity, which compromise rate capability and economic feasibility.

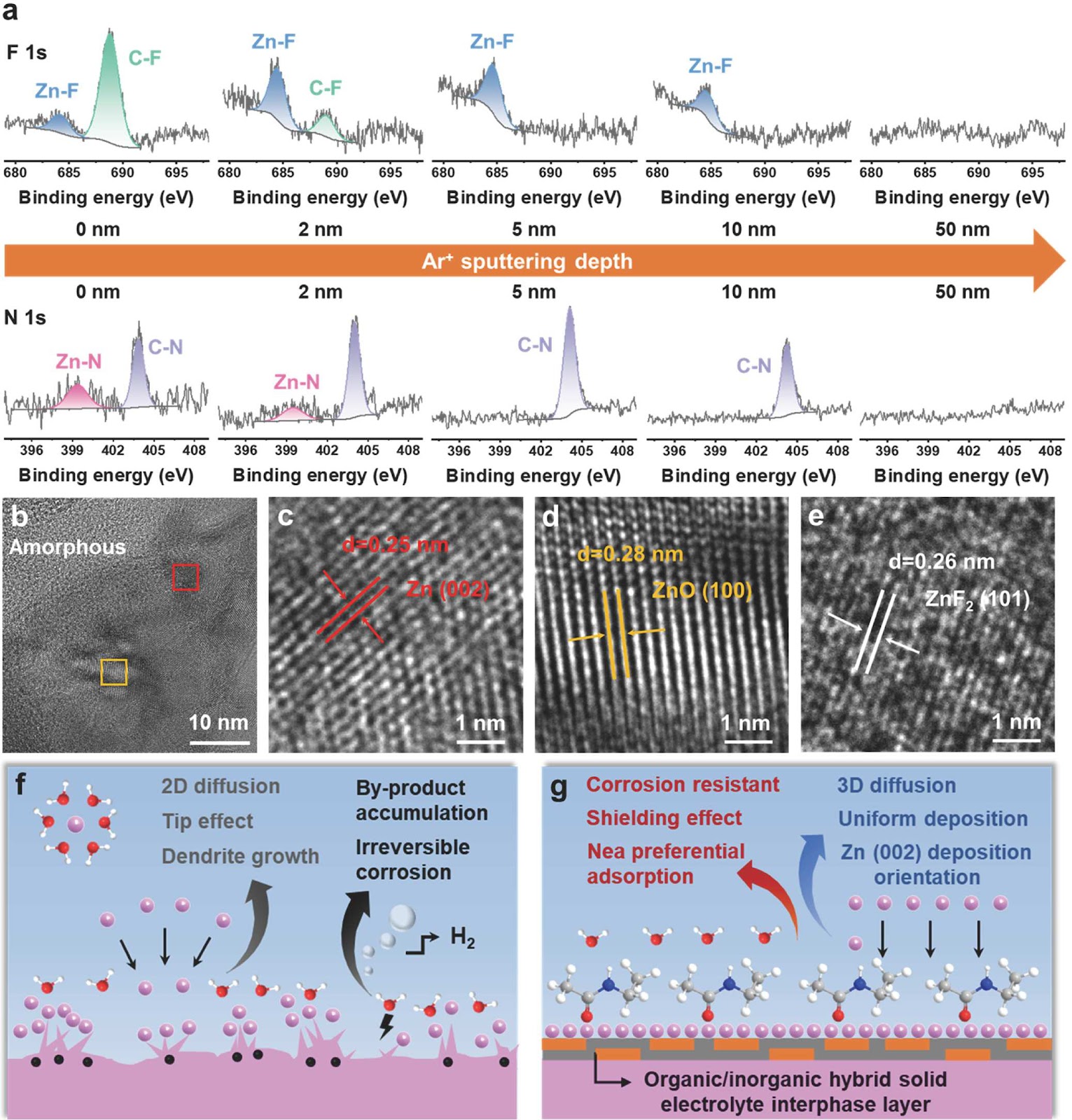

This work addresses the dual challenge of dendrite growth and interfacial side reactions by formulating a ternary eutectic electrolyte of N-ethylacetamide (Nea), H2O, and Zn(OTf)2. The Nea molecules preferentially adsorb on the zinc surface, creating a de-watering shielding layer that homogenizes the interfacial electric field. Simultaneously, an organic/inorganic hybrid solid electrolyte interphase forms in situ, which inhibits the tip effect and facilitates uniform Zn2+ diffusion. The resulting Zn//Zn cells cycle for 4590 h at 0.5 mA cm−2/0.5 mAh cm−2 and achieve 85.4% depth of discharge at 1.0 mA cm−2/5.0 mAh cm−2, while full cells with V2O5·1.6H2O cathodes exceed 5000 cycles with near-unity Coulombic efficiency.
Loading authentic research manuscript (Pages 1–5)...
Xudong JIANG, Kang XIAO, Ting HU, Kai YUAN, Yiwang CHEN (2025). Aqueous eutectic electrolyte-derived organic/inorganic hybrid interphase towards reversible zinc electrochemistry for long-life zinc ion batteries. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3299-x
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the failure mechanism of the hybrid SEI under prolonged high-rate cycling, and how does it compare to baseline ZIBs?
The hybrid SEI remains stable for over 5000 cycles at 1.0 and 2.0 A g−1 with Coulombic efficiency near 100%, whereas baseline aqueous ZIBs typically fail within 500 cycles due to dendrite-induced short circuits and byproduct accumulation. The organic/inorganic interphase suppresses the tip effect and free-water attack, preventing SEI rupture and reformation that would otherwise consume electrolyte and zinc inventory.
What are the cost implications of using N-ethylacetamide and Zn(OTf)2 compared to conventional water-in-salt electrolytes?
The ternary eutectic electrolyte employs moderate salt concentrations and a low-cost amide co-solvent, avoiding the extreme salt loadings (e.g., 20 M LiTFSI) that drive up material costs in water-in-salt systems. This formulation reduces electrolyte cost per kWh while maintaining high zinc reversibility, though a detailed techno-economic analysis is required to quantify savings at scale.
Can this electrolyte be scaled for industrial pouch cells, and what are the critical manufacturing bottlenecks?
The protocol uses standard solution mixing and does not require dry-room processing, which facilitates scale-up. However, the long-term stability of N-ethylacetamide against zinc and current collectors, as well as its compatibility with existing slurry casting and cell assembly lines, must be validated. The 4590 h symmetric cell cycling and 85.4% depth of discharge indicate potential for high-utilization anodes, but pilot-scale pouch cells are needed to confirm uniformity and safety.
How does the depth of discharge of 85.4% translate to practical energy density and anode cost?
An 85.4% depth of discharge at 1.0 mA cm−2/5.0 mAh cm−2 means that over 85% of the zinc anode capacity is utilized, reducing the required zinc mass per cell by roughly 15–20% compared to typical 70–80% utilization. This directly lowers anode material cost and increases cell-level energy density, though the overall system energy density also depends on cathode capacity and cell design.
What is the long-term chemical stability of the organic/inorganic hybrid SEI in the presence of trace water and oxygen?
The SEI forms in situ and remains effective over 5000 cycles, indicating resistance to hydrolysis and oxidation under the eutectic electrolyte environment. The Nea-derived de-watering layer minimizes water contact with the zinc surface, reducing SEI degradation. However, accelerated aging tests at elevated temperatures and with intentional water ingress are necessary to establish a shelf-life and abuse-tolerance profile.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
