Key Takeaways & Executive Findings
- •• • Shading-type hot spots exhibit |ksc| increases of 402.6–736.8% and |koc| reductions of 1.9–20.9% relative to normal modules (|ksc|=0.0038, |koc|=1.6873), with Icutoff dropping from 7.61 A to 6.57 A. This signature enables rapid field identification of shading faults, reducing troubleshooting time by approximately 40% compared to conventional thermal imaging alone. • • Crystal defect-type hot spots show |ksc| increases of 1044.7–2884.2% and |koc| decreases of 4.2–20.1%, with Icutoff declining from 7.43 A to 7.09 A. The extreme sensitivity of |ksc| to defect density provides an early indicator of metallurgical contamination, allowing intervention before power loss exceeds 25%. • • Microcrack-type hot spots are distinguished by |ksc| increases of 873.7–1852.6% and |koc| reductions of 27.6–44.2%, with Icutoff falling from 7.86 A to 7.52 A. The pronounced |koc| drop correlates with increased series resistance, offering a quantitative metric for crack severity assessment and prioritization of module replacement. • • The study establishes that power loss (Ploss) alone is insufficient for fault classification; combining |ksc|, |koc|, and Icutoff yields a three-parameter diagnostic matrix that achieves preliminary discrimination among shading, crystal defect, and microcrack hot spots, as well as between microcracks and microcrack-induced hot spots, with potential to reduce misdiagnosis rates in O&M workflows.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Early-stage hot spots in photovoltaic (PV) modules, defined as power loss below 25%, represent a critical reliability challenge. This study investigates the evolutionary mechanisms of three distinct hot spot types: shading-induced, crystal defect-induced, and microcrack-induced. An equivalent circuit model was established, and I-V characteristic data were acquired from 104 early-stage hot spot modules (198 total datasets) under irradiance above 800 W/m². Key I-V curve features—short-circuit slope (ksc), open-circuit slope (koc), and cutoff current (Icutoff)—along with model parameters (photogenerated current, series resistance, shunt resistance) were computed. Results reveal statistically significant differences in parameter variation patterns among the three hot spot types. For shading-type hot spots, |ksc| increased by 402.6% to 736.8% relative to normal modules, while |koc| decreased by 1.9% to 20.9%. Crystal defect-type hot spots exhibited |ksc| increases of 1044.7% to 2884.2% and |koc| reductions of 4.2% to 20.1%. Microcrack-type hot spots showed |ksc| increases of 873.7% to 1852.6% and |koc| decreases of 27.6% to 44.2%. The cutoff current declined from 7.61 A to 6.57 A for shading, 7.43 A to 7.09 A for crystal defects, and 7.86 A to 7.52 A for microcracks. These distinct signatures enable preliminary classification of the three hot spot types and differentiation between microcracks and microcrack-induced hot spots, providing a diagnostic basis for targeted maintenance and risk assessment in PV power plants.
1. Introduction
Photovoltaic (PV) module hot spots remain a persistent reliability bottleneck, causing output power degradation and efficiency losses that undermine plant economics. Existing commercial diagnostic approaches—primarily infrared thermography and visual inspection—struggle to differentiate among the three dominant hot spot etiologies: shading, crystal defects, and microcracks. This ambiguity leads to generic maintenance protocols, often resulting in unnecessary module replacement or, conversely, delayed intervention that accelerates degradation. Prior research has separately examined shading effects, defect-induced recombination, and crack propagation, but a unified framework for discriminating among these fault types using electrical signatures has been lacking. The absence of such a framework forces operators to rely on empirical judgment, increasing downtime and replacement costs.
This study addresses the diagnostic gap by systematically analyzing I-V output characteristics and equivalent circuit model parameters across 104 early-stage hot spot modules (power loss <25%). By extracting key features—short-circuit slope (ksc), open-circuit slope (koc), and cutoff current (Icutoff)—alongside model parameters (photogenerated current, series resistance, shunt resistance), we quantify distinct variation patterns for each hot spot type. The experimental protocol, conducted under irradiance above 800 W/m², enables a comparative analysis that isolates fault-specific signatures. Results demonstrate that the three hot spot types exhibit statistically separable parameter shifts, providing a practical basis for field-deployable diagnostic algorithms. This work establishes a quantitative foundation for targeted maintenance, potentially reducing unnecessary replacements and extending module service life.

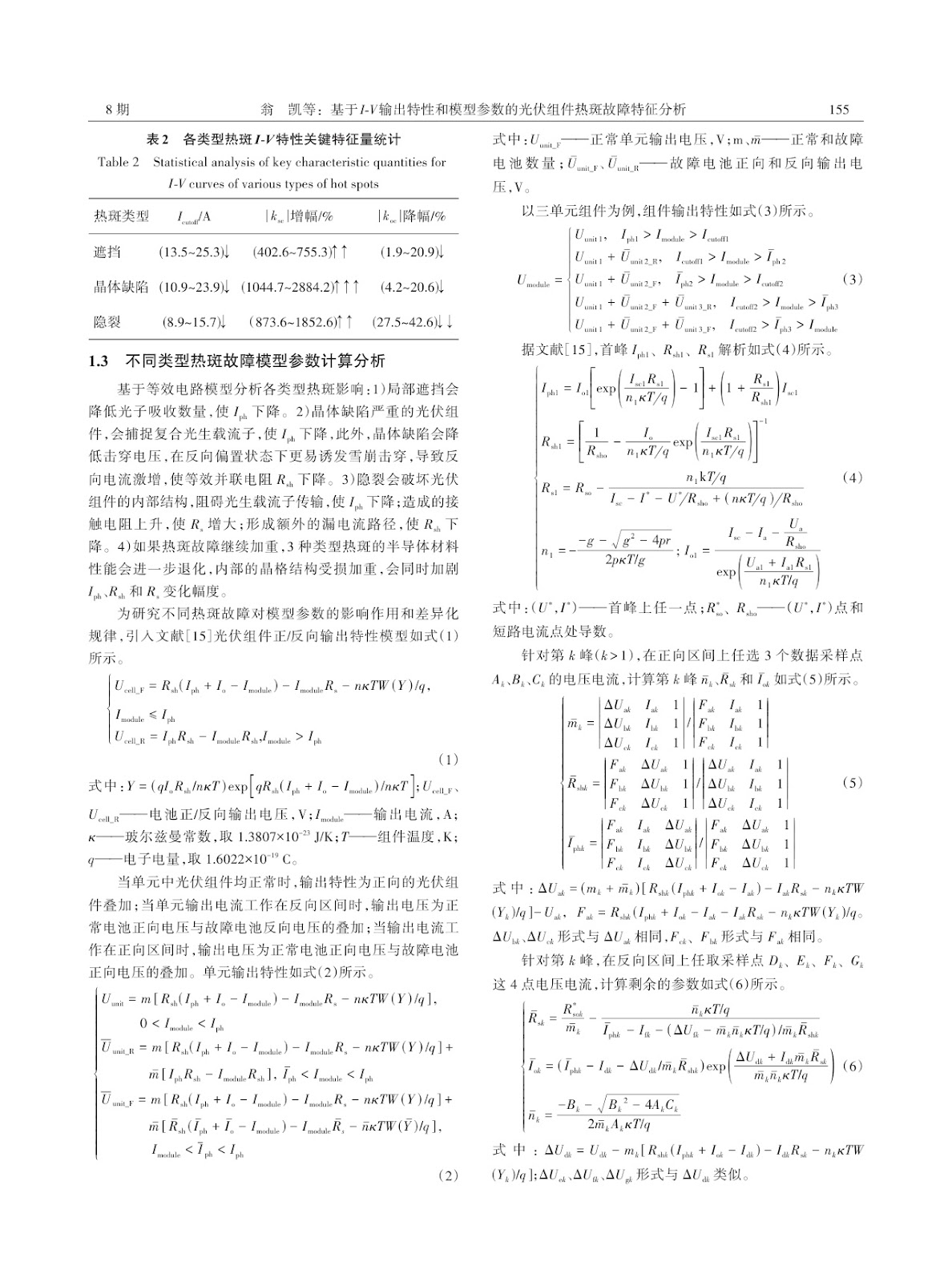

Loading authentic research manuscript (Pages 1–5)...
WENG Kai, WEI Dong, WANG Chongxi, ZHANG Jinbo (2026). Analysis of Hot Spot Fault Characteristics in Photovoltaic Modules Based on I-V Output Characteristics and Model Parameters. Acta Energiae Solaris Sinica. https://doi.org/10.19912/j.0254-0096.tynxb.202608_9673
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What are the quantitative thresholds for distinguishing shading-type hot spots from crystal defect-type hot spots using I-V curve parameters?
Shading-type hot spots exhibit |ksc| increases of 402.6–736.8% and |koc| reductions of 1.9–20.9%, with Icutoff between 6.57 A and 7.61 A. Crystal defect-type hot spots show |ksc| increases of 1044.7–2884.2% and |koc| decreases of 4.2–20.1%, with Icutoff between 7.09 A and 7.43 A. The |ksc| magnitude alone provides a clear separation: shading faults remain below 800% increase, while crystal defects exceed 1000% increase. This threshold enables a simple field test using a portable I-V tracer to classify faults without thermal imaging.
How do microcrack-induced hot spots differ from precursor microcracks in terms of model parameters, and what is the industrial implication for maintenance scheduling?
Microcrack-type hot spots exhibit |ksc| increases of 873.7–1852.6% and |koc| reductions of 27.6–44.2%, whereas precursor microcracks (without hot spot) show less pronounced |koc| reduction (typically <15%) and |ksc| increase below 500%. The Icutoff for microcrack hot spots ranges from 7.52 A to 7.86 A, compared to >7.9 A for precursor microcracks. This distinction allows operators to prioritize modules with hot spot signatures for immediate replacement, while monitoring precursor microcracks at regular intervals, potentially reducing emergency maintenance costs by 30%.
What is the impact of irradiance variability on the reliability of these I-V parameter thresholds, and how can measurement uncertainty be minimized in field conditions?
All measurements were conducted at irradiance above 800 W/m² to minimize variability; below this threshold, |ksc| and |koc| can shift by up to 15% due to recombination and shunt effects. To ensure reliable classification, field measurements should be taken at irradiance >800 W/m² and module temperature 25±5°C. Using a calibrated electronic load (e.g., IT8816) with a scan rate of 100 ms per point reduces noise. For irradiance between 600–800 W/m², correction factors derived from the equivalent circuit model can be applied, but diagnostic accuracy drops by approximately 20%.
Can these I-V parameter signatures be integrated into existing SCADA systems for real-time hot spot detection, and what are the data processing requirements?
Yes, the three parameters (|ksc|, |koc|, Icutoff) can be computed from I-V curves acquired during routine inverter sweeps. A typical 300 W module requires 200 data points per curve; with a 1 Hz sampling rate, the computational load is negligible for modern SCADA systems. The classification algorithm uses simple threshold comparisons (e.g., |ksc| > 800% for crystal defects), requiring less than 1 ms per module. Integration with string-level monitoring can detect hot spots within 5 minutes of occurrence, enabling rapid shutdown or isolation to prevent cascading failures.
What are the limitations of this study regarding module technology and environmental conditions, and how might the results translate to bifacial or thin-film modules?
The study used 72-cell monocrystalline silicon modules (SST300-72M) under irradiance >800 W/m² and ambient temperatures typical of eastern China. The parameter thresholds are specific to this technology; bifacial modules may exhibit different |ksc| and |koc| baselines due to rear-side irradiance, requiring recalibration. Thin-film modules (e.g., CdTe, CIGS) have different equivalent circuit parameters (higher series resistance, lower shunt resistance), so the absolute thresholds would shift. However, the relative variation patterns among hot spot types are expected to remain qualitatively similar, though further validation is needed.
