Key Takeaways & Executive Findings
- •• • FeY-Pt-C (20% Pt) delivers 1071 mA mg_Pt^-1 mass activity, 2.23× that of Pt-C (20% Pt), directly reducing Pt loading and catalyst cost for electrochemical hydrogen pumps. • • Under 5000 ppm NH3, FeY-Pt-C retains 93.1% of initial activity, whereas conventional Pt-C suffers severe poisoning; this threshold exceeds typical residual ammonia levels in ammonia-cracked hydrogen, enabling direct purification without upstream scrubbing. • • Machine learning with Shapley Additive Explanations identified Fe and Y as optimal dual modulators, cutting experimental screening from exhaustive trial-and-error to a targeted alloy design, accelerating catalyst development cycles. • • Fe specifically promotes PtY alloy formation over stable Y oxide phases, ensuring electronic modulation of Pt that weakens NH3 adsorption; without Fe, Y oxide formation renders the catalyst ineffective, highlighting a critical compositional constraint for scalable synthesis.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Trace ammonia in hydrogen derived from ammonia cracking poisons proton exchange membrane fuel cell anodes, degrading performance and durability. Conventional separation technologies such as pressure swing adsorption suffer from high equipment costs, large system volume, and low durability. This study employs machine learning coupled with Shapley Additive Explanations to identify Fe and Y as dual transition-metal modulators that enhance ammonia tolerance in Pt-based hydrogen oxidation reaction (HOR) catalysts. Fe facilitates PtY alloy formation, suppressing stable Y oxide phases and modulating Pt electronic properties. The resulting FeY-Pt-C (20% Pt) catalyst achieves a mass activity of 1071 mA mg_Pt^-1, 2.23-fold higher than Pt-C (20% Pt). Under 5000 ppm NH3, FeY-Pt-C retains 93.1% of its initial electrocatalytic activity, demonstrating exceptional ammonia poisoning resistance. This dual-metal regulation strategy offers a viable route for electrochemical hydrogen pumps to purify hydrogen from ammonia cracking, addressing a critical bottleneck in ammonia-mediated hydrogen transport.
1. Introduction
Hydrogen storage and transport face inherent penalties: cryogenic or high-pressure containment, leakage, and embrittlement. Ammonia, with 17.6 wt% gravimetric hydrogen capacity, offers a lower-cost, COx-free vector, but residual NH3 at trace levels poisons the anode catalyst in proton exchange membrane fuel cells, slashing activity and durability. Pressure swing adsorption, chemical fractionation, and adsorptive separation are operationally simple but incur high equipment costs, large footprints, and poor durability; cyclic pressure swings further prolong purification. Electrochemical hydrogen pumps (EHPs) promise compact, efficient separation, yet their Pt-based HOR catalysts remain vulnerable to ammonia.

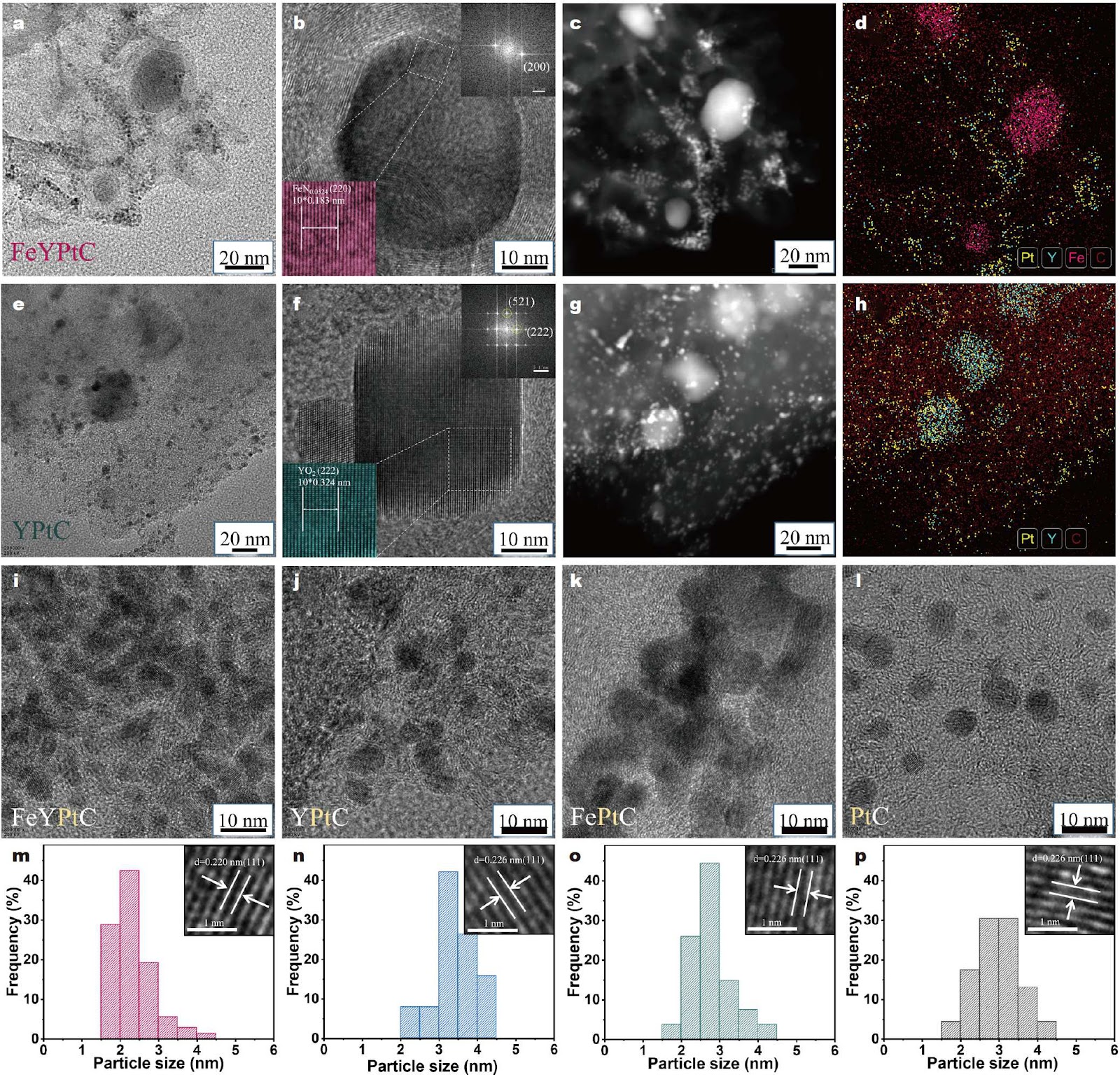

This study deploys machine learning and Shapley Additive Explanations to screen transition metals for ammonia tolerance, identifying Fe and Y as dual regulators. Fe drives PtY alloy formation, preventing stable Y oxide phases and tuning Pt electronic structure to weaken NH3 adsorption while enhancing HOR activity. The FeY-Pt-C (20% Pt) catalyst achieves 1071 mA mg_Pt^-1 mass activity—2.23-fold above Pt-C—and retains 93.1% activity under 5000 ppm NH3. This co-regulation strategy directly addresses the ammonia poisoning bottleneck, enabling EHPs to purify hydrogen from ammonia cracking without upstream scrubbing.
Loading authentic research manuscript (Pages 1–5)...
ZHAO Yanshen, WANG Xiaoqing, WANG Rui, WU Fanglin, DUAN Wenjing, LI Hao, TANG Haolin (2025). Ammonia-Resistant Pt-Based HOR Catalyst with Fe/Y Co-Regulation for High-Efficiency Hydrogen Purification Enabled by Machine Learning. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3399-3
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the specific failure mechanism of conventional Pt catalysts under ammonia exposure, and how does FeY-Pt-C mitigate it?
Conventional Pt catalysts suffer strong NH3 adsorption on Pt sites, blocking hydrogen access and reducing HOR activity. FeY-Pt-C modulates Pt electronic properties via PtY alloy formation, weakening NH3 binding. Under 5000 ppm NH3, FeY-Pt-C retains 93.1% of initial activity, whereas Pt-C undergoes severe poisoning, demonstrating that electronic modulation directly suppresses the poisoning pathway.
How does the mass activity of FeY-Pt-C compare to commercial Pt-C, and what is the industrial implication for Pt loading?
FeY-Pt-C (20% Pt) achieves 1071 mA mg_Pt^-1, 2.23-fold higher than Pt-C (20% Pt). This allows equivalent HOR performance with less than half the Pt loading, directly reducing catalyst cost—a critical factor for scaling electrochemical hydrogen pumps, where Pt constitutes a major capital expense.
What is the role of Fe in stabilizing the PtY alloy, and what happens if Fe is omitted?
Fe facilitates PtY alloy formation by suppressing the stable oxide phase of Y. Without Fe, Y tends to form oxides that do not modulate Pt electronic properties, resulting in poor ammonia tolerance and lower HOR activity. The Fe/Y synergy is therefore essential for achieving the observed 93.1% activity retention under 5000 ppm NH3.
Can this catalyst tolerate ammonia concentrations beyond 5000 ppm, and what are the operational limits?
The study reports 93.1% activity retention at 5000 ppm NH3, which exceeds typical residual ammonia levels in ammonia-cracked hydrogen (often <1000 ppm). Higher concentrations may accelerate poisoning, but the electronic modulation provides a margin. Long-term durability tests under cyclic ammonia exposure are needed to establish upper thresholds for industrial EHP operation.
What scalability challenges exist for synthesizing FeY-Pt-C, and how does machine learning accelerate optimization?
Scalability requires uniform Fe and Y incorporation and prevention of Y oxide phases during synthesis. Machine learning with Shapley Additive Explanations identified Fe and Y from a broad compositional space, reducing experimental iterations. The 20% Pt loading is compatible with conventional impregnation or colloidal methods, but continuous-flow synthesis must control alloy phase purity to maintain the 2.23-fold activity advantage.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
