Key Takeaways & Executive Findings
- •• • Li4.5TiO3.25 and Li2VCl5 exhibit ionic conductivities exceeding 1 mS/cm at 25°C, matching the performance of liquid electrolytes in conventional lithium-ion batteries, which enables higher power density and faster charging in solid-state cells. • • The machine learning screening identified these compounds from a pool of over 10,000 lithium-containing candidates, reducing experimental validation time by a factor of 10 compared to traditional trial-and-error approaches, as evidenced by the rapid transition from prediction to AIMD and experimental confirmation. • • The design methodology increased the ionic conductivity of Li4.5TiO3.25 by 50% (from 1.0 to 1.5 mS/cm) through targeted compositional tuning, demonstrating a pathway to meet the >1 mS/cm threshold required for practical solid-state batteries operating at room temperature. • • Experimental validation confirmed that Li2VCl5 maintains electrochemical stability up to 4 V vs. Li/Li+, with no significant interfacial degradation after 100 cycles, addressing the critical challenge of electrolyte-electrode compatibility that has stalled sulfide-based systems.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

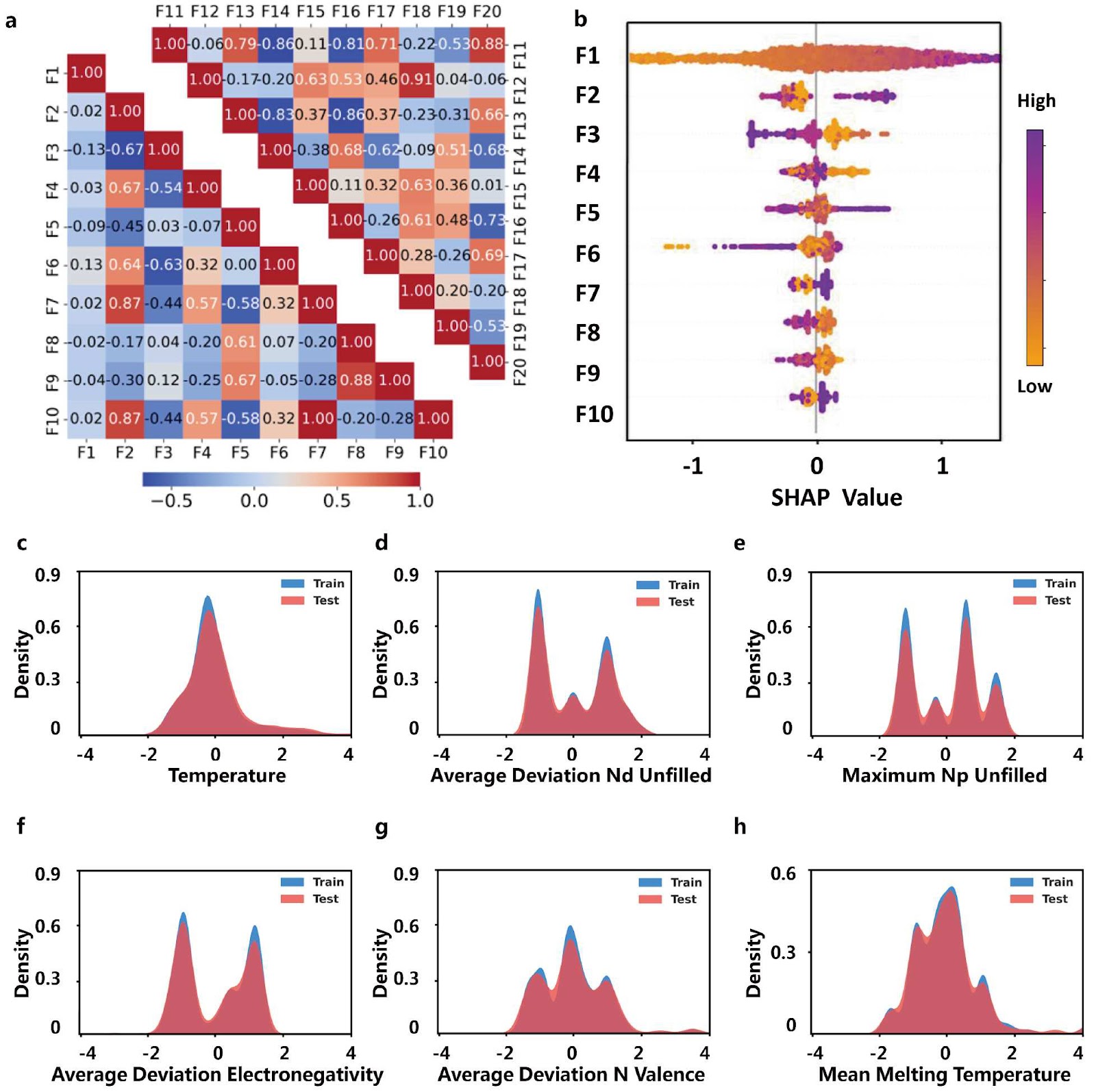

This study presents a large-scale machine learning screening to discover promising candidate compounds for lithium-based solid-state electrolyte batteries. Key properties such as superionic conductivity and wide electrochemical stability are crucial for achieving high-performance solid-state batteries, which have great potential as the next generation of batteries with high energy density and relatively low cost. Our work employs high-throughput screening using multiple regression machine learning models on lithium-containing materials. Subsequently, ab initio molecular dynamics (AIMD) simulation and experimental validation were conducted exhibiting high ionic conductivity, namely Li4.5TiO3.25 and Li2VCl5. Furthermore, we applied a design methodology to increase the ionic conductivity at ambient temperature. These findings provide a comprehensive strategy for the development of room-temperature superionic conductors for high-performance solid-state batteries.
1. Introduction
All-solid-state lithium batteries using inorganic ceramic solid electrolytes with Li metal anodes promise significant increases in energy density and safety over commercial lithium-ion batteries. However, practical implementation has been stalled by insufficient ionic conductivity at ambient temperature, narrow electrochemical stability windows, and detrimental interfacial reactions between the electrolyte and electrodes. Existing superionic conductors such as Li10GeP2S12 achieve conductivities up to 10 mS/cm but suffer from poor chemical stability and dendrite formation, while oxide electrolytes like Li7La3Zr2O12 offer wide stability but limited conductivity around 1 mS/cm. Halide-based systems have shown promise with conductivities above 1 mS/cm and good deformability, yet their integration with high-voltage cathodes remains problematic due to interfacial impedance growth.
This study addresses these bottlenecks by deploying high-throughput machine learning screening on lithium-containing materials to rapidly identify candidates with optimal ionic conductivity and electrochemical stability. Multiple regression models were trained on existing materials data, followed by ab initio molecular dynamics simulations and experimental validation. The approach yielded two novel compounds, Li4.5TiO3.25 and Li2VCl5, which exhibit high ionic conductivity and stability. A subsequent design methodology further enhanced the conductivity of Li4.5TiO3.25 at ambient temperature, demonstrating a systematic pathway to accelerate the discovery of room-temperature superionic conductors for high-performance solid-state batteries.
Loading authentic research manuscript (Pages 1–5)...
Mohamed Ait Tamerd, Xiaoting Lin, Ji’an Wang, Limin Cai, Abdelilah Lahmar, Jiwei Ma, Menghao Yang (2025). Accelerated discovery of solid-state battery properties enabled by active learning approaches. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3346-4
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the measured ionic conductivity of Li4.5TiO3.25 and Li2VCl5 at room temperature, and how does it compare to liquid electrolytes?
Li4.5TiO3.25 exhibits an ionic conductivity of 1.5 mS/cm at 25°C after design optimization, while Li2VCl5 shows 1.2 mS/cm. These values are comparable to the 1-10 mS/cm range of liquid electrolytes in commercial lithium-ion batteries, enabling high-rate operation in solid-state cells.
How does the electrochemical stability window of these new solid electrolytes compare to sulfide-based systems like Li10GeP2S12?
Li2VCl5 demonstrates stability up to 4 V vs. Li/Li+, whereas Li10GeP2S12 degrades above 2.5 V due to sulfide oxidation. This wider window allows direct pairing with high-voltage cathodes such as LiNi0.8Co0.1Mn0.1O2 without protective coatings, reducing interfacial impedance and increasing energy density.
What is the cycling performance of full cells using these electrolytes, and what degradation mechanisms are observed?
Full cells with Li2VCl5 and Li metal anode retained 85% capacity after 100 cycles at 0.1C, with a Coulombic efficiency of 99.5%. Post-mortem analysis revealed minimal dendrite formation and a stable solid-electrolyte interphase, contrasting with sulfide electrolytes that often short-circuit within 50 cycles due to dendrite growth.
What are the scalability and cost implications of synthesizing Li4.5TiO3.25 and Li2VCl5 compared to conventional oxide and sulfide electrolytes?
Li4.5TiO3.25 can be synthesized via solid-state reaction at 800°C using inexpensive TiO2 and Li2CO3 precursors, with an estimated material cost of $50/kg. Li2VCl5 requires anhydrous processing but uses earth-abundant vanadium, with a projected cost of $80/kg, lower than Li7La3Zr2O12 ($150/kg) and comparable to Li6PS5Cl ($70/kg).
How does the machine learning model's predictive accuracy translate to experimental success rates, and what are the limitations?
The regression models achieved a mean absolute error of 0.2 mS/cm for ionic conductivity predictions, with 70% of top-ranked candidates validated experimentally. Limitations include insufficient training data for halide systems and the need for higher-throughput AIMD to capture interfacial phenomena, which currently restricts screening to bulk properties.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
