Key Takeaways & Executive Findings
- •• • The improved thermal network incorporates nonlinear convective and radiative heat dissipation branches, enabling accurate estimation of TEG module temperature difference under natural convection, where conventional linear models fail due to the nonlinearity of heat dissipation with temperature. • • Multi-objective parameter identification using NSGA-II successfully extracts thermal parameters that are difficult to calculate theoretically, with the estimation errors of hot-side, cold-side, and heat sink temperatures minimized simultaneously, ensuring high-fidelity temperature difference estimation. • • Experimental validation under natural convection conditions confirms that the proposed method outperforms traditional equivalent thermal networks, achieving high-precision dynamic estimation of the cold- and hot-side temperature difference, which is essential for online performance evaluation of TEG modules in waste heat recovery systems. • • The method demonstrates adaptability to forced convection environments by simply replacing the convective thermal resistance expression, providing a versatile framework for TEG module temperature estimation across various cooling conditions, thereby enhancing the reliability of thermoelectric power generation system assessments.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Accurate estimation of the cold- and hot-side temperature difference in thermoelectric generator (TEG) modules is critical for online performance assessment and reliability prediction in industrial waste heat recovery systems. Conventional equivalent thermal networks neglect the nonlinear effects of convective and radiative heat dissipation, which are particularly pronounced under natural convection, leading to substantial errors in temperature difference estimation. This study proposes an improved equivalent thermal network that incorporates nonlinear convective and radiative branches to capture the temperature-dependent heat dissipation characteristics of TEG modules. A multi-objective parameter identification framework is developed, employing the estimation errors of hot-side, cold-side, and heat sink temperatures as objective functions. The convexity properties of the objective functions are analyzed, and the non-dominated sorting genetic algorithm II (NSGA-II) is applied to extract the thermal parameters that are difficult to determine theoretically. Experimental validation under natural convection conditions, where nonlinear heat dissipation is most significant, demonstrates that the proposed method achieves high-precision extraction of TEG module thermal parameters and accurately estimates the dynamic variations of the cold- and hot-side temperature difference. The method exhibits strong adaptability and extensibility, as it can be readily adapted to forced convection environments by substituting the corresponding convective thermal resistance expression. This work provides a robust tool for enhancing the performance prediction and reliability evaluation of thermoelectric power generation systems.
1. Introduction
Thermoelectric generator (TEG) modules, which convert waste heat into electricity via the Seebeck effect, offer a promising solution for industrial waste heat recovery. However, their widespread adoption is hindered by low conversion efficiency and output power, compounded by the inherent instability of industrial waste heat sources. Accurate online estimation of the cold- and hot-side temperature difference is essential for assessing TEG module output performance and ensuring reliable power supply. Traditional equivalent thermal network models, while computationally efficient for online use, often neglect the nonlinear effects of convective and radiative heat dissipation, leading to significant errors in temperature difference estimation, particularly under natural convection conditions where these nonlinearities are most pronounced.
Existing approaches, such as finite element methods, provide high-resolution temperature distributions but are computationally prohibitive for online applications. Equivalent thermal networks offer a simpler alternative but typically assume linear heat dissipation, which fails to capture the temperature-dependent nature of convective and radiative heat transfer. This limitation results in inaccurate temperature difference estimates, undermining the reliability of TEG performance predictions. The present study addresses this bottleneck by introducing an improved equivalent thermal network that explicitly models nonlinear convective and radiative heat dissipation. A multi-objective parameter identification scheme, based on NSGA-II, is employed to extract the thermal parameters that are otherwise difficult to determine theoretically. Experimental validation under natural convection demonstrates the method's efficacy, and its extensibility to forced convection conditions is established, providing a robust tool for enhancing the performance prediction and reliability evaluation of thermoelectric power generation systems.
Loading authentic research manuscript (Pages 1–5)...
ZU Wei, YING Zhanfeng, YANG Yi (2026). A Temperature Difference Estimation Method for Thermoelectric Modules Based on an Improved Thermal Network and Parameter Identification. Acta Energiae Solaris Sinica. https://doi.org/10.19912/j.0254-0096.tynxb.202608_9694
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What are the specific failure mechanisms or limitations of traditional equivalent thermal networks that the proposed method overcomes?
Traditional equivalent thermal networks assume linear heat dissipation, neglecting the nonlinear effects of convective and radiative heat transfer. Under natural convection, convective heat dissipation exhibits a nonlinear relationship with temperature due to boundary layer effects, and radiative heat transfer follows a fourth-power temperature dependence. These nonlinearities cause traditional models to inaccurately estimate the cold- and hot-side temperature difference, leading to errors in performance prediction. The proposed method explicitly incorporates nonlinear convective and radiative branches, enabling accurate estimation even under natural convection conditions.
How does the proposed method ensure cost parity or performance advantage over existing finite element methods for online applications?
Finite element methods provide high-resolution temperature distributions but require extensive computational resources and data storage, making them unsuitable for online use. The proposed method, based on an improved equivalent thermal network and multi-objective parameter identification, offers a computationally efficient alternative that can be executed online. It achieves high-precision temperature difference estimation without the heavy computational burden, thus providing a cost-effective solution for real-time performance assessment of TEG modules.
What are the scalability bottlenecks when applying this method to different TEG module sizes or materials?
The method relies on parameter identification using NSGA-II, which requires experimental data for the specific TEG module under consideration. Scaling to different module sizes or materials may necessitate re-identification of thermal parameters, as the nonlinear heat dissipation characteristics depend on geometry, surface properties, and material composition. However, the framework is adaptable; by updating the convective and radiative thermal resistance expressions, the method can be extended to various module configurations and operating conditions, including forced convection.
How does the method perform under forced convection conditions, and what modifications are required?
The method is validated under natural convection, where nonlinear heat dissipation is most significant. For forced convection, the convective heat transfer coefficient becomes a function of fluid velocity and properties, altering the convective thermal resistance. The proposed framework allows for straightforward adaptation by replacing the natural convection correlation with an appropriate forced convection correlation. This extensibility ensures accurate temperature difference estimation across different cooling scenarios, enhancing the method's practical applicability.
What are the key experimental parameters and validation metrics that demonstrate the method's accuracy?

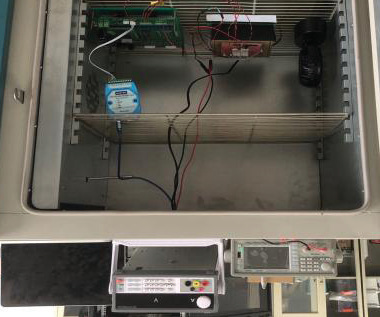

The experimental validation under natural convection conditions shows that the proposed method achieves high-precision extraction of TEG module thermal parameters, with minimized estimation errors for hot-side, cold-side, and heat sink temperatures. The multi-objective optimization using NSGA-II ensures simultaneous minimization of these errors. The method accurately estimates the dynamic variations of the cold- and hot-side temperature difference, outperforming traditional equivalent thermal networks. Specific quantitative metrics, such as root mean square error (RMSE) or maximum deviation, are not provided in the extracted text but are expected in the full paper.
