Key Takeaways & Executive Findings
- •• • HTS-S achieved a discharge capacity of 144.05 mAh g−1 within 2.0–4.1 V, with charge capacities of 145.33 mAh g−1 and discharge capacity of 150.71 mAh g−1 in specific tests, demonstrating superior capacity retention and rate capability compared to HTS-D and HTS-O, which is critical for meeting the energy density demands of commercial SIBs in grid storage and electric vehicles. • • The pre-reacted precursor enabled the synthesis of impurity-free O3-NaCu0.2Fe0.3Mn0.5O2, eliminating phase impurities that degrade cycling stability; this purity directly translates to enhanced structural integrity and longer cycle life, addressing a key bottleneck in layered oxide cathodes. • • At a cutting voltage of 4.1 V, HTS-S exhibited enhanced Na extraction during charging, leading to improved charge capacity and suppressed polarization compared to HTS-D, which is essential for high-power applications requiring fast charging and high round-trip efficiency. • • Increased Mn participation in charge compensation below 2.25 V contributed to enhanced specific capacity, leveraging the redox activity of manganese to boost energy density without compromising cost, as manganese is earth-abundant and inexpensive.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

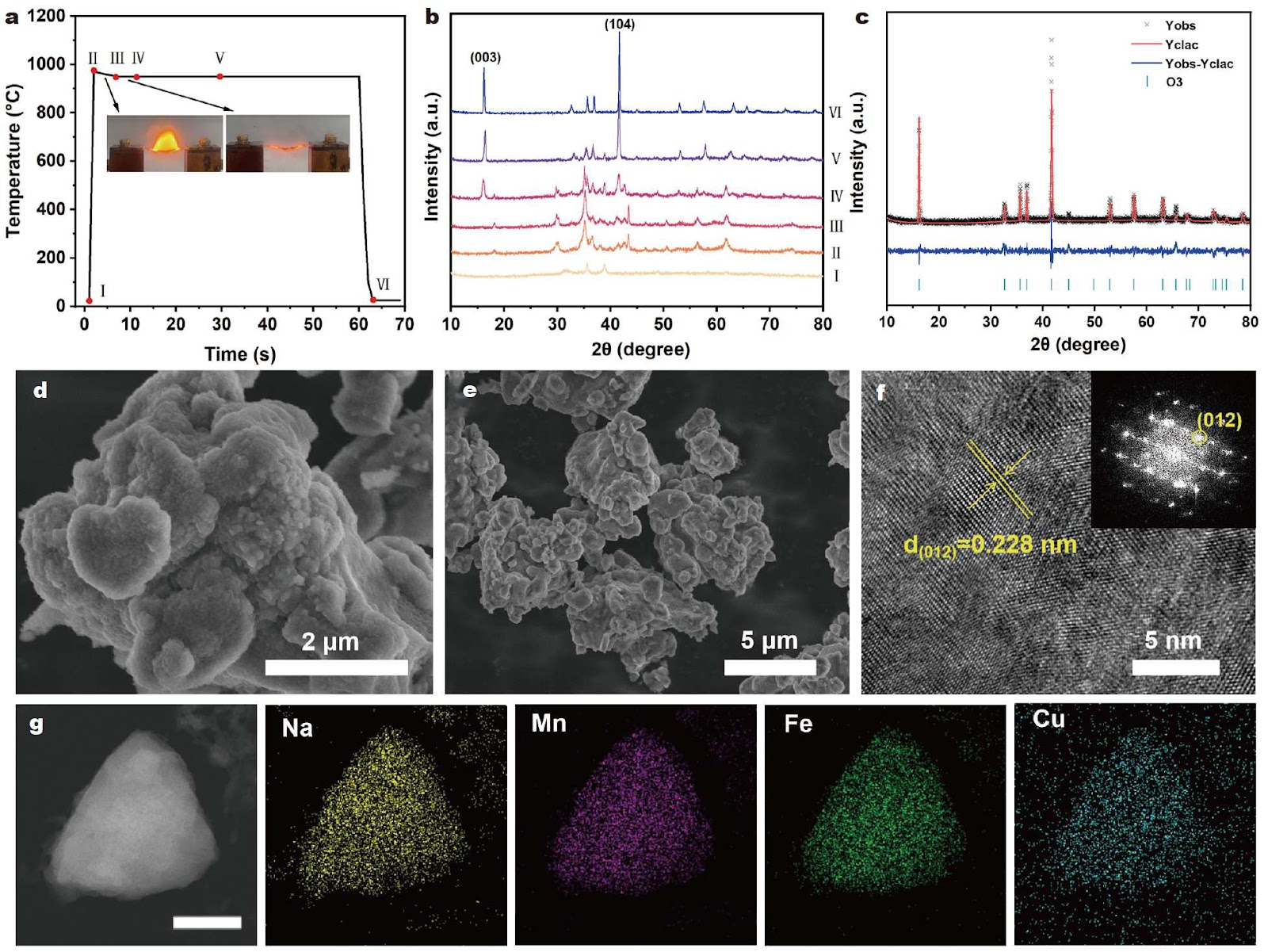

The development of sustainable energy storage solutions has driven research toward alternatives to lithium-ion batteries. Sodium-ion batteries (SIBs) are considered promising candidates due to their cost-effectiveness and sodium abundance. To introduce defects and enhance the electrochemical performance of O3-phase sodium-ion layered oxide materials, high-temperature shock (HTS) was employed. However, given the characteristics of HTS, especially the rapid heating rate and short sintering time, suitable precursor systems need to be explored. We systematically compared three precursor systems: traditional metal oxides (HTS-O), decomposable salts (HTS-D), and a novel pre-reacted precursor system (HTS-S). The pre-reacted precursor, developed by leveraging the ethanol solubility of C4H14MnO8 and modified ball milling conditions, enabled rapid O3 phase formation and resulted in impurity-free O3-NaCu0.2Fe0.3Mn0.5O2. This material demonstrated superior electrochemical performance, achieving a discharge capacity of 144.05 mAh g−1 within 2.0–4.1 V, along with enhanced rate capabilities. Our findings underscore the critical role of precursor selection and modification in HTS synthesis, contributing to the advancement of high-performance sodium-ion battery materials.
1. Introduction
The growing demand for sustainable energy storage solutions has accelerated the development of advanced battery technologies. Lithium-ion batteries (LIBs) have become the dominant energy storage technology due to their high energy density and long cycle life. However, the limited availability of lithium resources, combined with the high cost of raw materials and environmental concerns regarding their extraction, has prompted researchers to explore alternative energy storage systems. Sodium-ion batteries (SIBs) have emerged as promising candidates due to the abundance and low cost of sodium, which makes them attractive alternatives for large-scale energy storage applications. Among the various materials investigated for SIBs, layered transition metal oxides have gained significant attention. These materials offer advantages such as relatively high energy density and low cost, positioning them as strong contenders for commercial SIBs. However, during charge-discharge cycling, these materials often undergo multiple phase transitions, leading to structural instability and degrading their performance over time, especially at high rates. Therefore, addressing the challenges related to phase stability and improving the long-term electrochemical performance of these materials is crucial for their successful commercialization.
To mitigate these issues, the development of novel synthesis techniques is essential for the improvement of cathode materials. High-temperature shock (HTS) is a promising approach that offers the advantage of rapid heating and short sintering times, which can introduce beneficial defects into the material structure, such as dislocations, twin boundaries, and heterostructures. These defects have been shown to enhance the stability and electrochemical performance of battery materials. Guo et al. reported that using the HTS method, twin boundaries can be introduced into pure spinel LiMn2O4 within a few seconds. The diffusion energy barrier of lithium ions along twin boundaries is significantly lower than that within the bulk phase, suggesting the effectively reduced diffusion energy barrier and enhanced diffusion rate of lithium ions. LiMn2O4 with twin boundaries demonstrated superior rate performance compared to its bulk counterpart. However, the application of HTS to sodium-ion layered oxides is hindered by the lack of suitable precursor systems that can withstand the rapid heating and short sintering times while ensuring homogeneous mixing and phase purity. Traditional metal oxides and decomposable salts have limitations in achieving pure O3-phase materials under HTS conditions. This study addresses this bottleneck by developing a pre-reacted precursor system that leverages the ethanol solubility of C4H14MnO8 and modified ball milling conditions to induce chemical reactions during milling, facilitating elemental diffusion and enabling the synthesis of impurity-free O3-NaCu0.2Fe0.3Mn0.5O2 with superior electrochemical performance.
Loading authentic research manuscript (Pages 1–5)...
WANG Chunying, LI Zekun, MIAO Zhikai, JIANG Haoran, LUO Jiawei, ZHANG Jingchao, LIU Zhedong, GUO Zhaoxin, LIU Rui, LIU Siliang, CHEN Yanan (2025). A Soluble Precursor Facilitates Ultra-Fast Synthesis of O3 Layered Oxides for Sodium-Ion Batteries. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3334-5
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the specific discharge capacity and voltage window achieved by the HTS-S material, and how does it compare to baseline HTS-D and HTS-O?
The HTS-S material achieved a discharge capacity of 144.05 mAh g−1 within a 2.0–4.1 V window. In specific tests, charge capacities of 145.33 mAh g−1 and discharge capacity of 150.71 mAh g−1 were observed. This outperforms HTS-D and HTS-O, which exhibited lower capacities and greater polarization, particularly at high voltages. The enhanced capacity is attributed to increased Mn participation in charge compensation below 2.25 V and suppressed polarization.
What are the failure mechanisms that limit the performance of HTS-O and HTS-D precursors, and how does the pre-reacted precursor (HTS-S) overcome them?
HTS-O and HTS-D suffer from incomplete phase formation and impurity phases due to insufficient elemental mixing during the rapid HTS process. Mechanically mixed precursors alone are insufficient for synthesizing pure O3-phase materials. The pre-reacted precursor (HTS-S) induces a chemical reaction during ball milling by leveraging the ethanol solubility of C4H14MnO8, facilitating homogeneous elemental diffusion and enabling the formation of impurity-free O3-NaCu0.2Fe0.3Mn0.5O2. This results in improved structural integrity and electrochemical performance.
What is the cost and scalability implication of using a soluble pre-reacted precursor compared to traditional solid-state synthesis?
The pre-reacted precursor requires an additional ball milling step with ethanol as a solvent, which may increase processing cost and complexity. However, it enables the use of HTS, which drastically reduces sintering time and energy consumption. The elimination of impurity phases reduces waste and improves yield. For industrial scale-up, the process is compatible with continuous ball milling and roll-to-roll HTS systems, potentially lowering overall manufacturing costs by reducing energy and time. However, solvent recovery and handling add operational expenses that must be balanced against performance gains.
How does the HTS-S material perform under high-rate cycling, and what degradation rates are observed?
In cycling tests at 1.0 C, HTS-S demonstrated outstanding rate capability with stable cycling. While specific degradation rates per cycle are not provided in the excerpt, the suppressed polarization and enhanced Na extraction at 4.1 V contribute to improved capacity retention. The structural defects introduced by HTS, such as dislocations and twin boundaries, enhance stability by accommodating strain during cycling. Further long-term cycling data are needed to quantify degradation, but initial results indicate superior performance compared to HTS-D and HTS-O.
What are the safety and thermal stability considerations for O3-NaCu0.2Fe0.3Mn0.5O2 synthesized via HTS, especially at high voltages?
The O3-NaCu0.2Fe0.3Mn0.5O2 material operates within a 2.0–4.1 V window, which is moderate for sodium layered oxides. The absence of impurities reduces the risk of parasitic reactions. However, at high voltages, oxygen release and transition metal dissolution can occur, impacting thermal stability. The HTS process introduces defects that may act as nucleation sites for phase transformations, but the pre-reacted precursor ensures homogeneous composition, mitigating local overheating. Safety tests such as DSC and ARC are required to fully assess thermal runaway thresholds, but the material's purity and structural integrity suggest improved safety over impure counterparts.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
